Product Details
＋
C11 Macro Pad does not come with switches or keycaps. Please see our and collections. For reprogramming C11, download the and use .

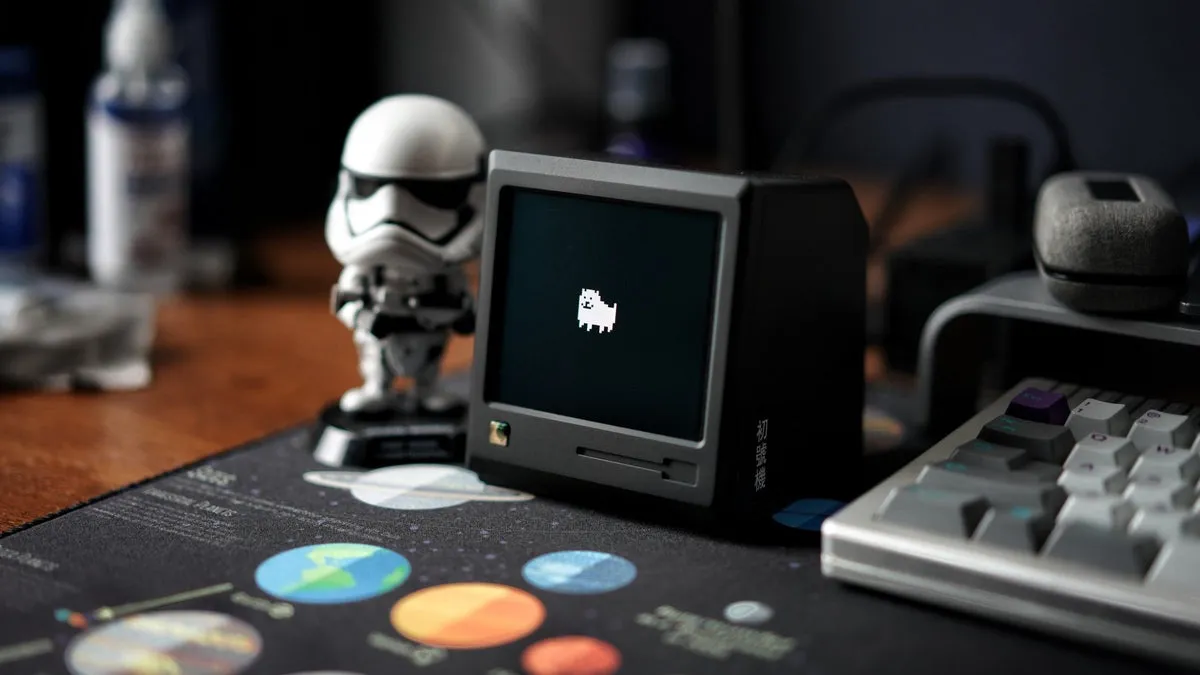

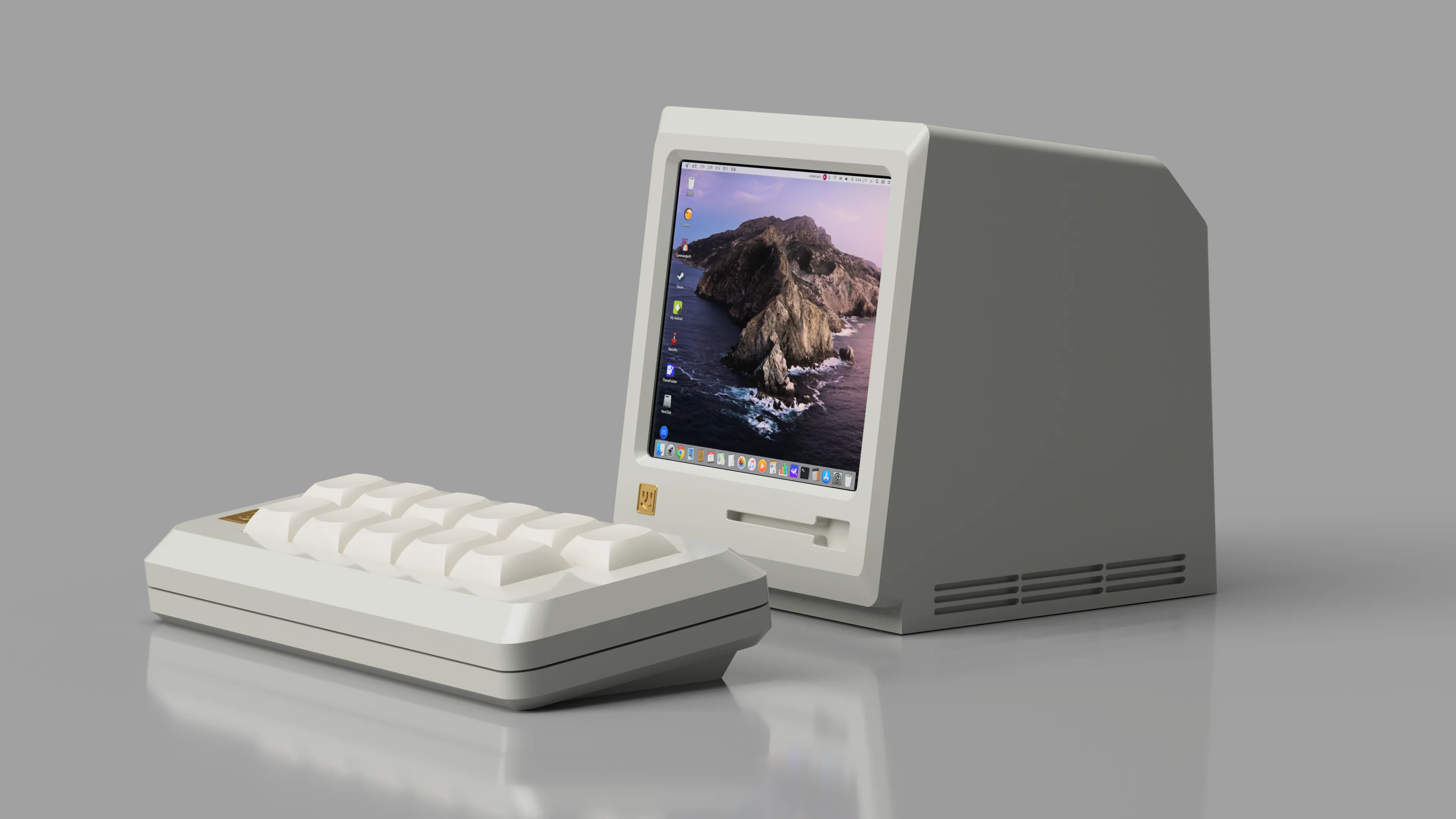

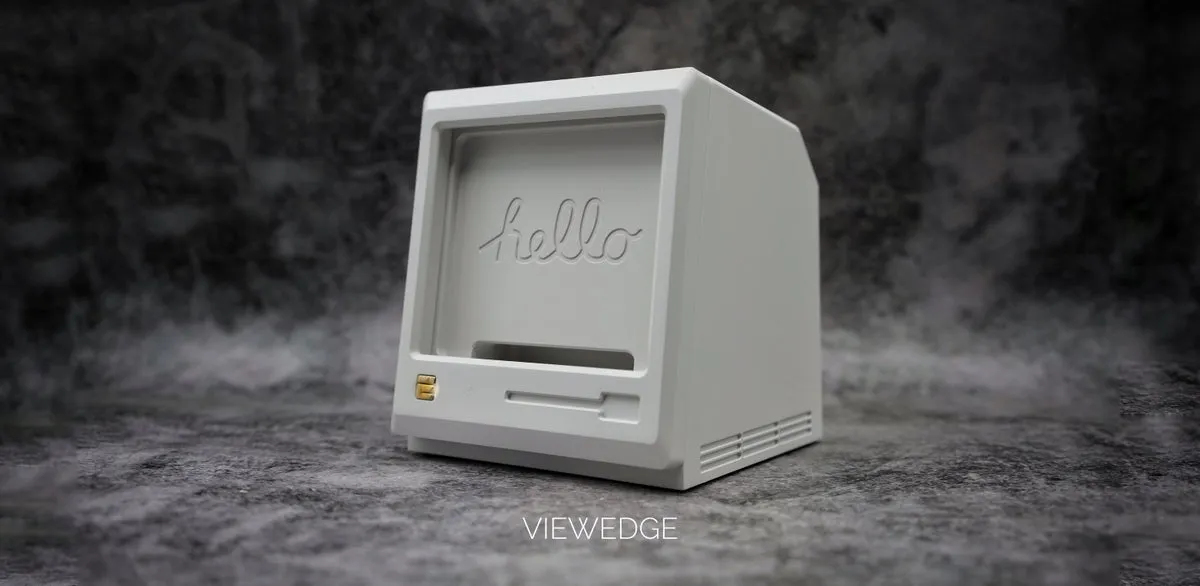

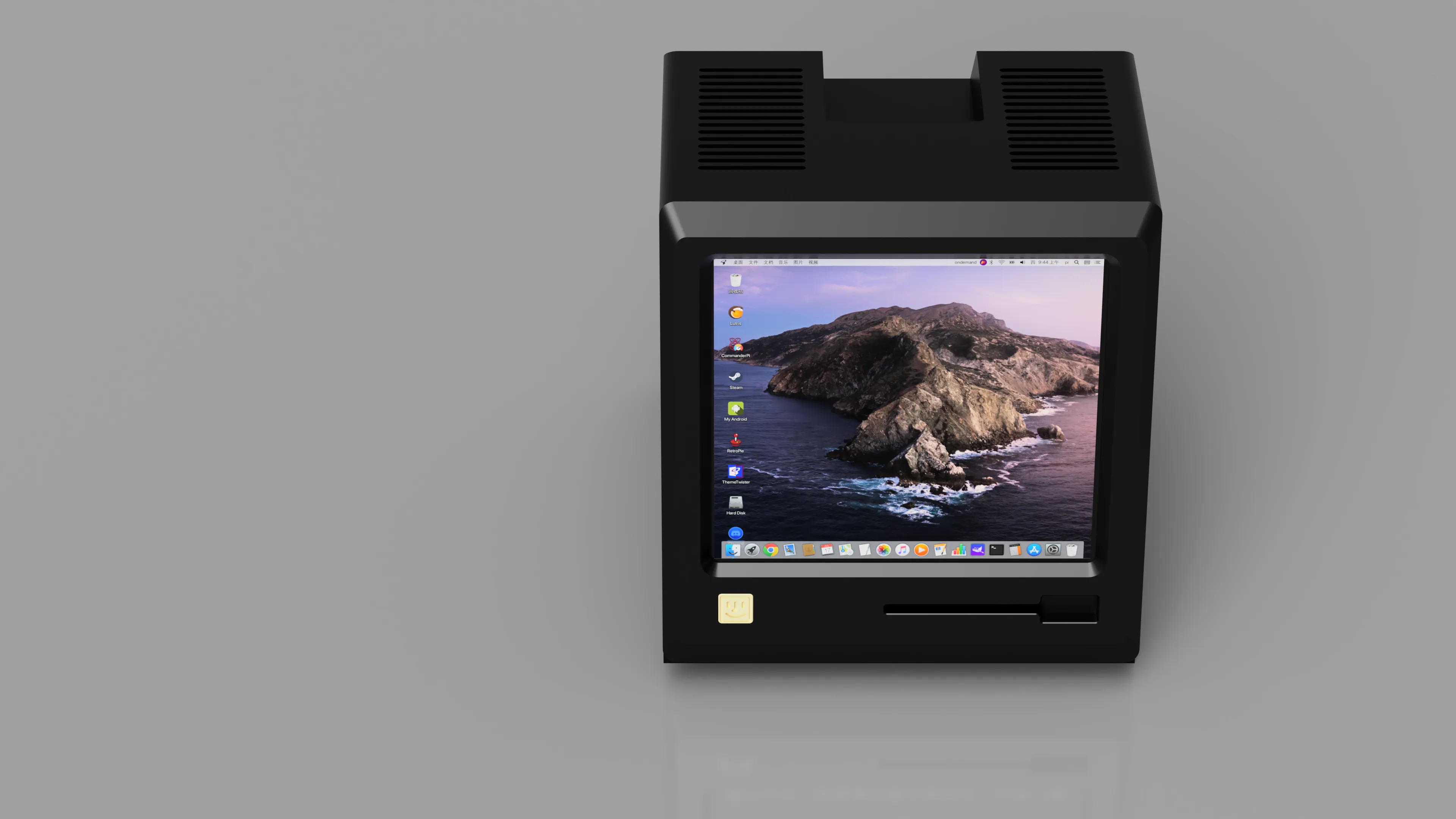

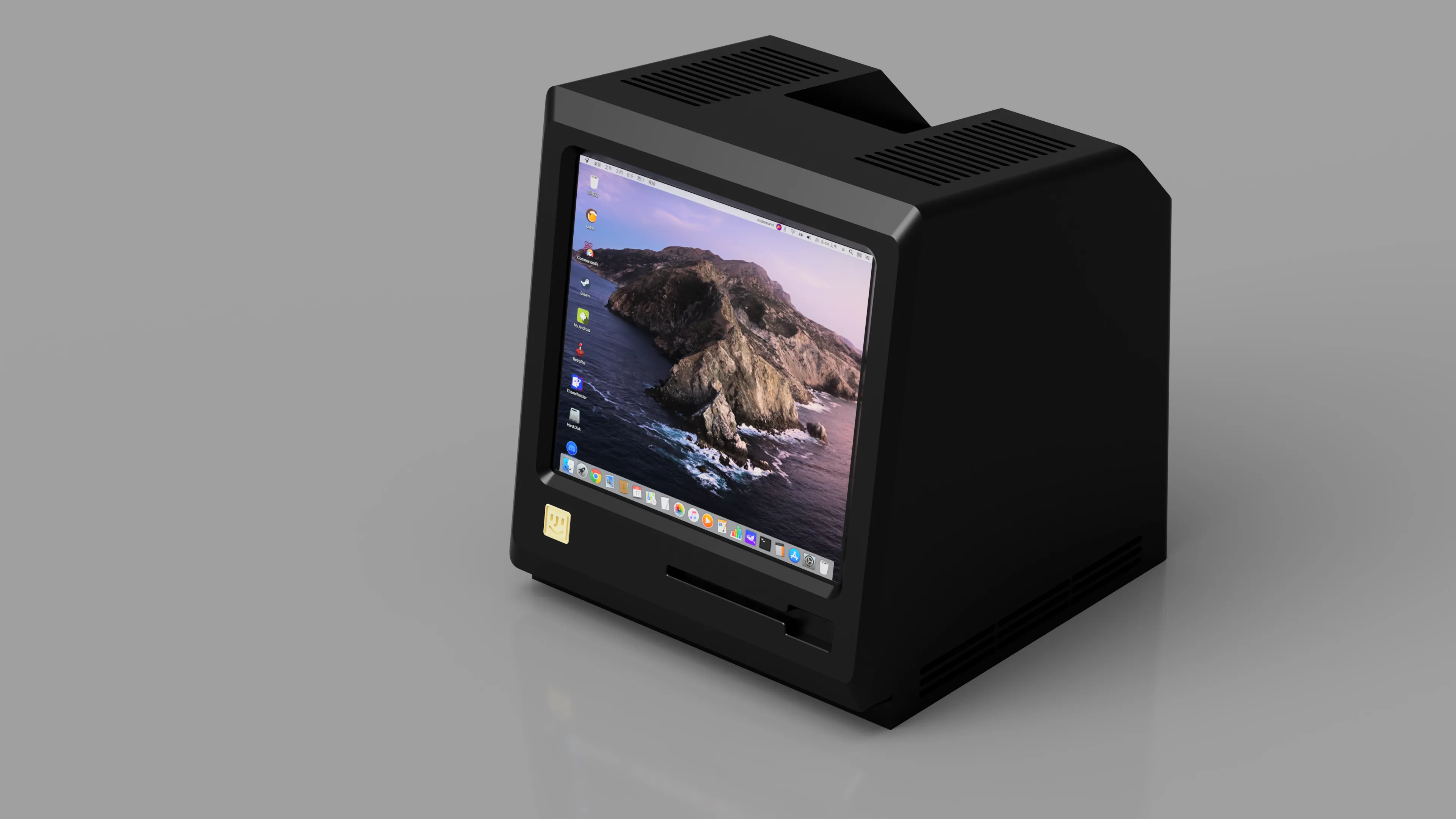

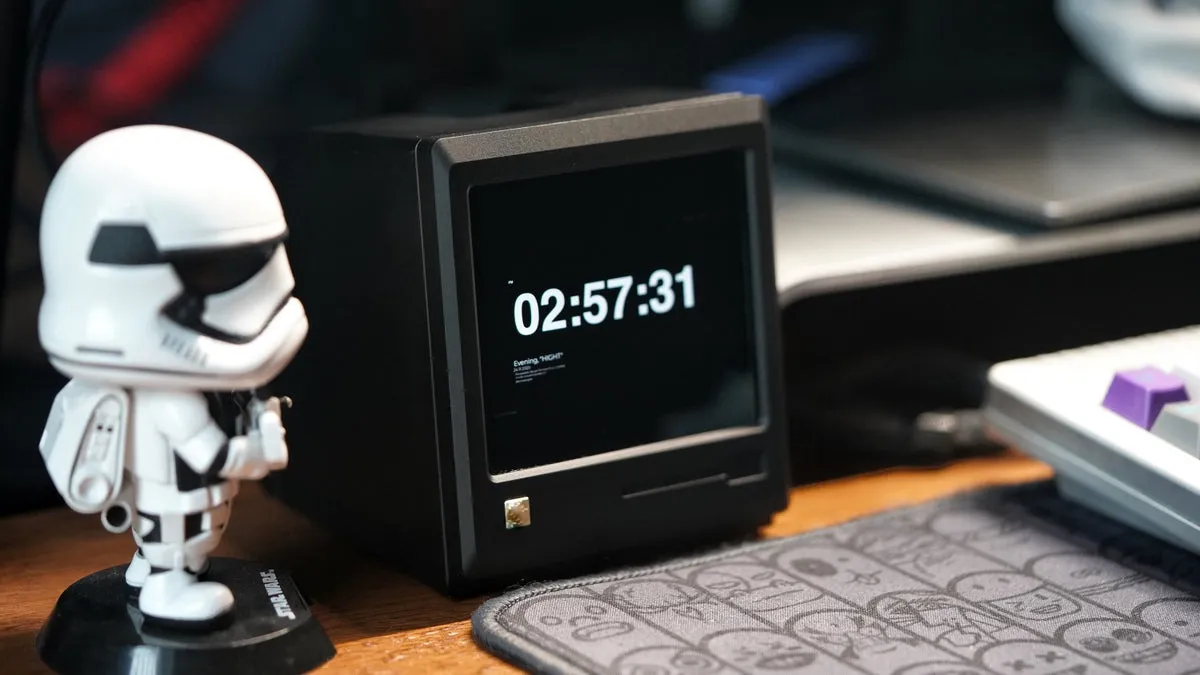

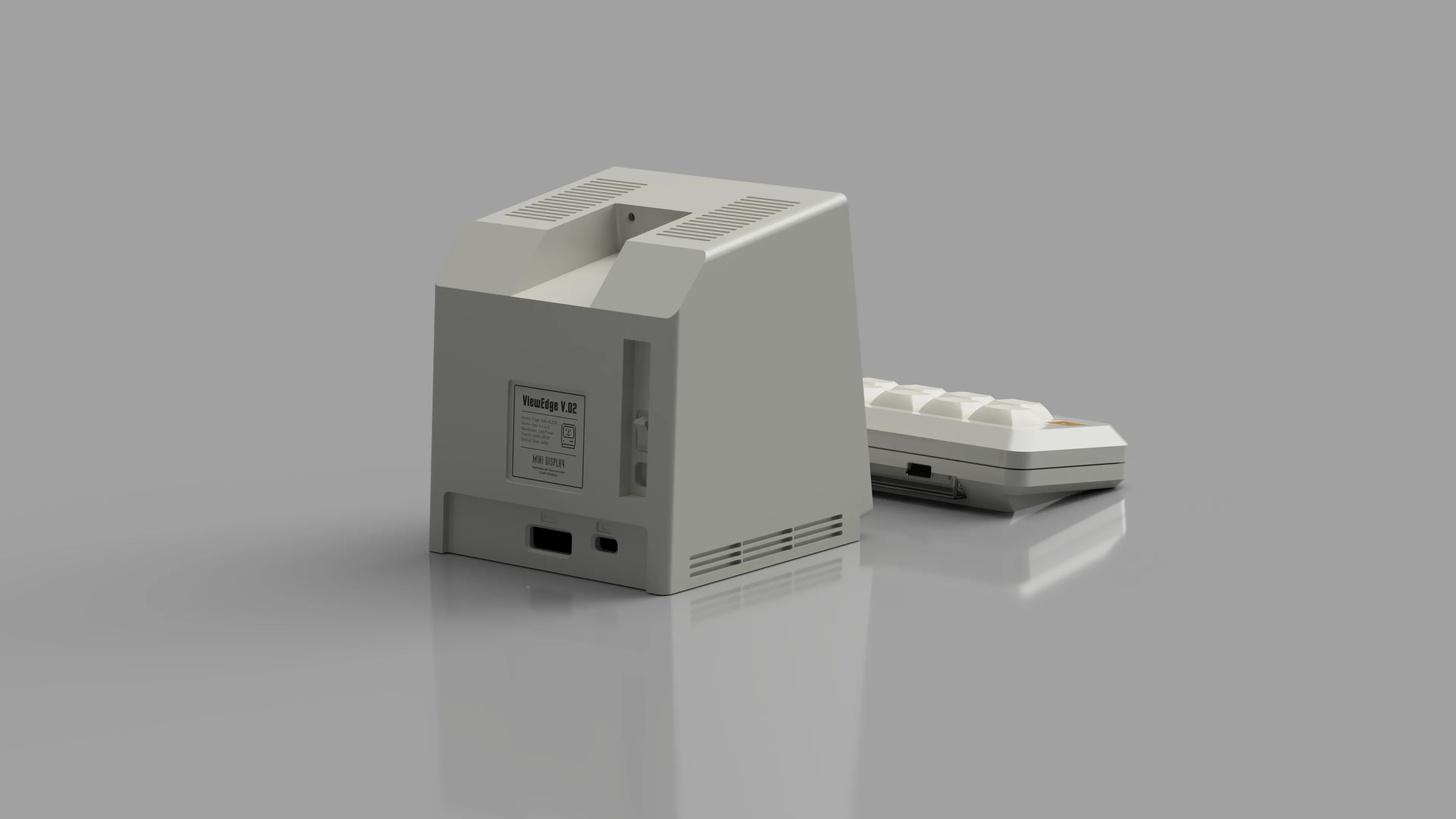

VE - Display
VE, or Viewedge, is a fully functional mini display. Connect by HDMI to compatible devices for a great conversation piece and explore some of the many uses:- Electronic photo album
- Video player
- Performance monitoring

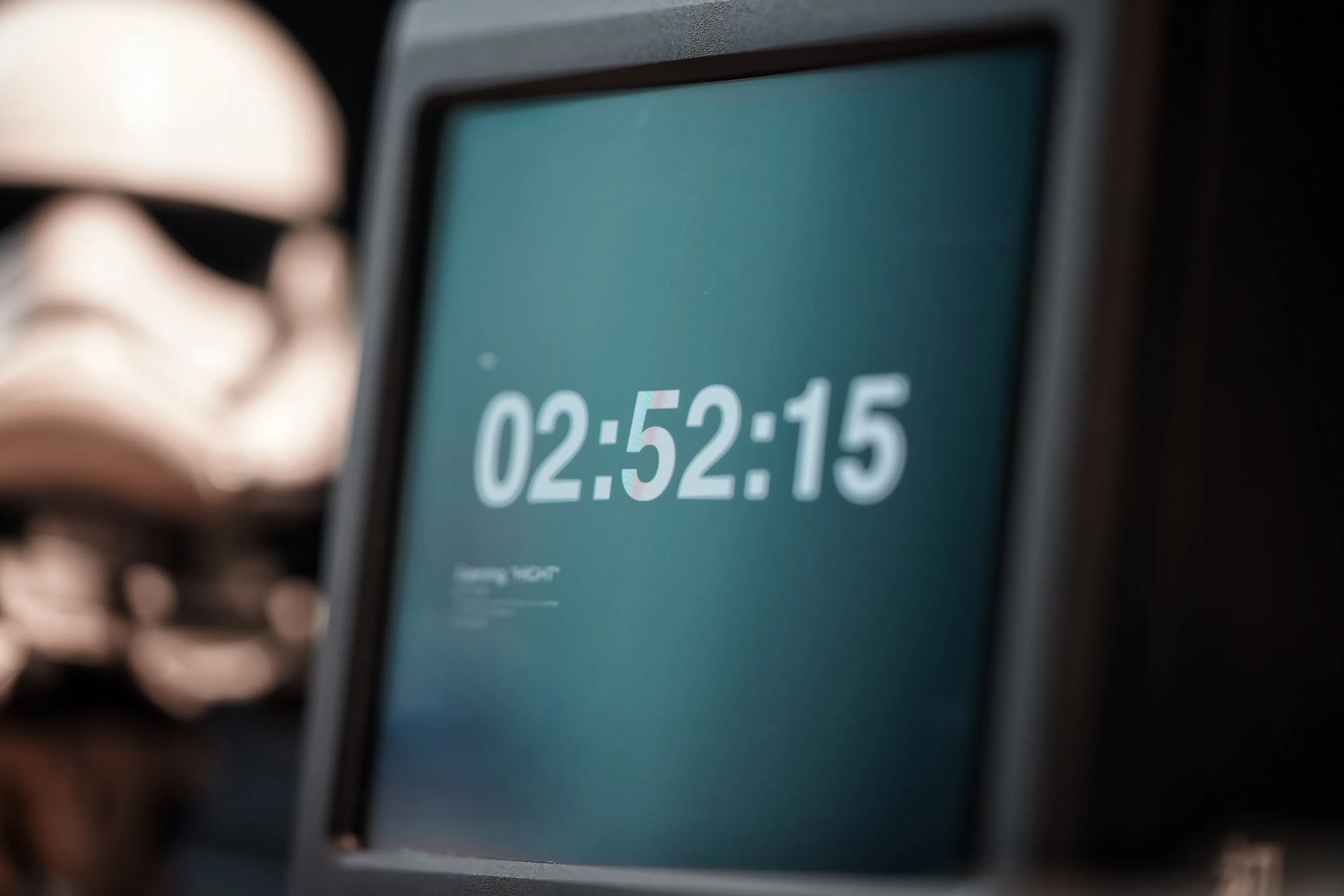

- Clock & Weather
- Reminders & Calendar
- Decoration

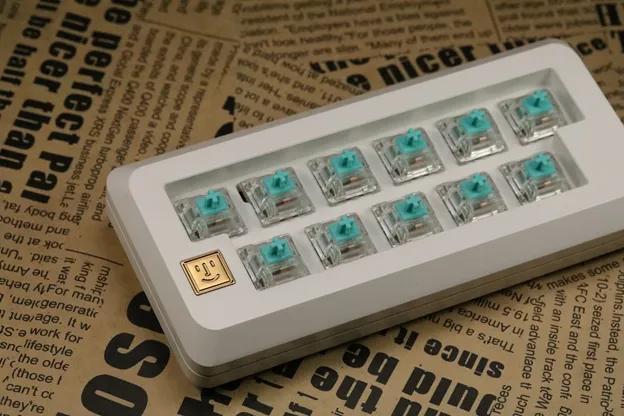

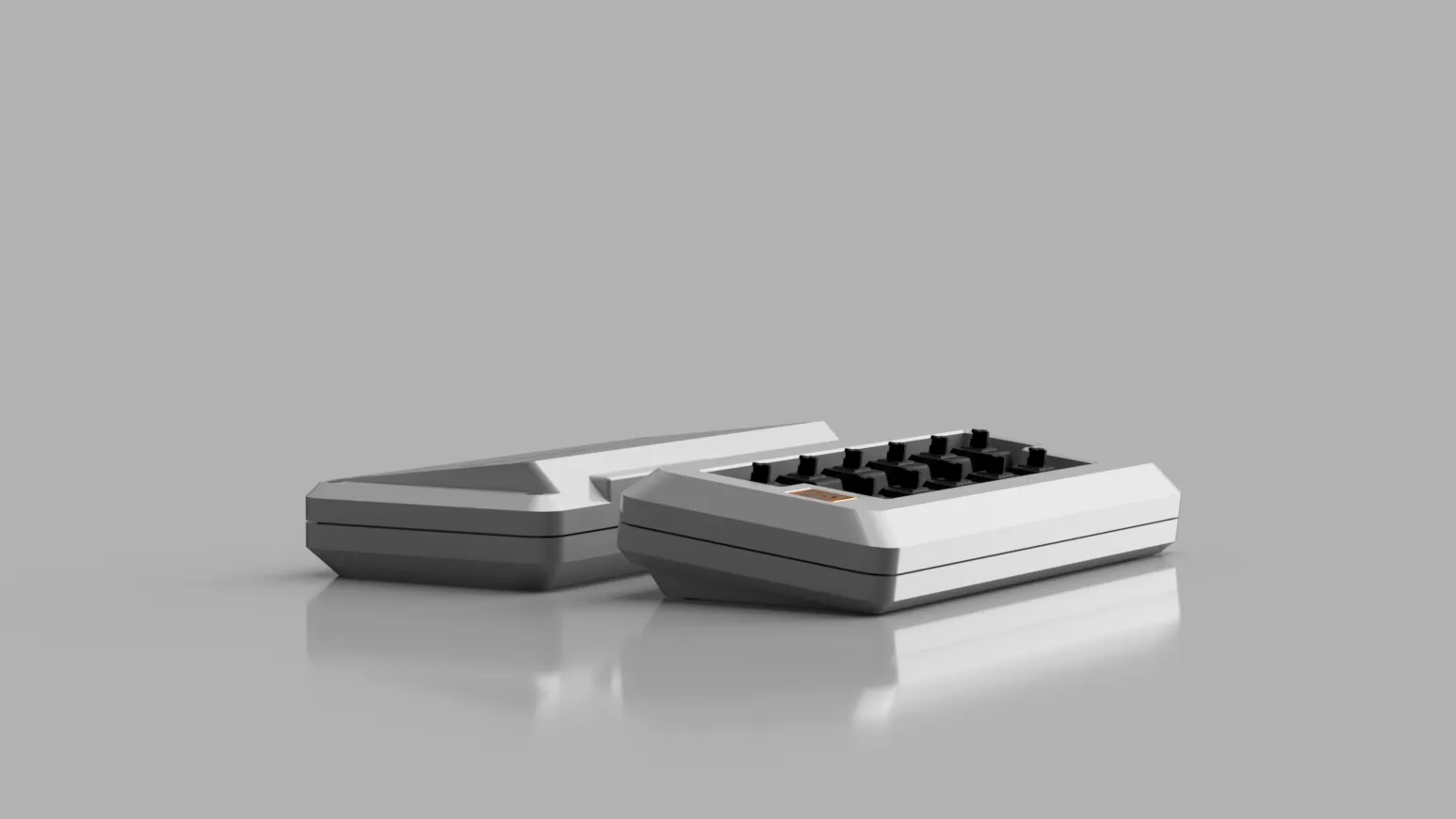

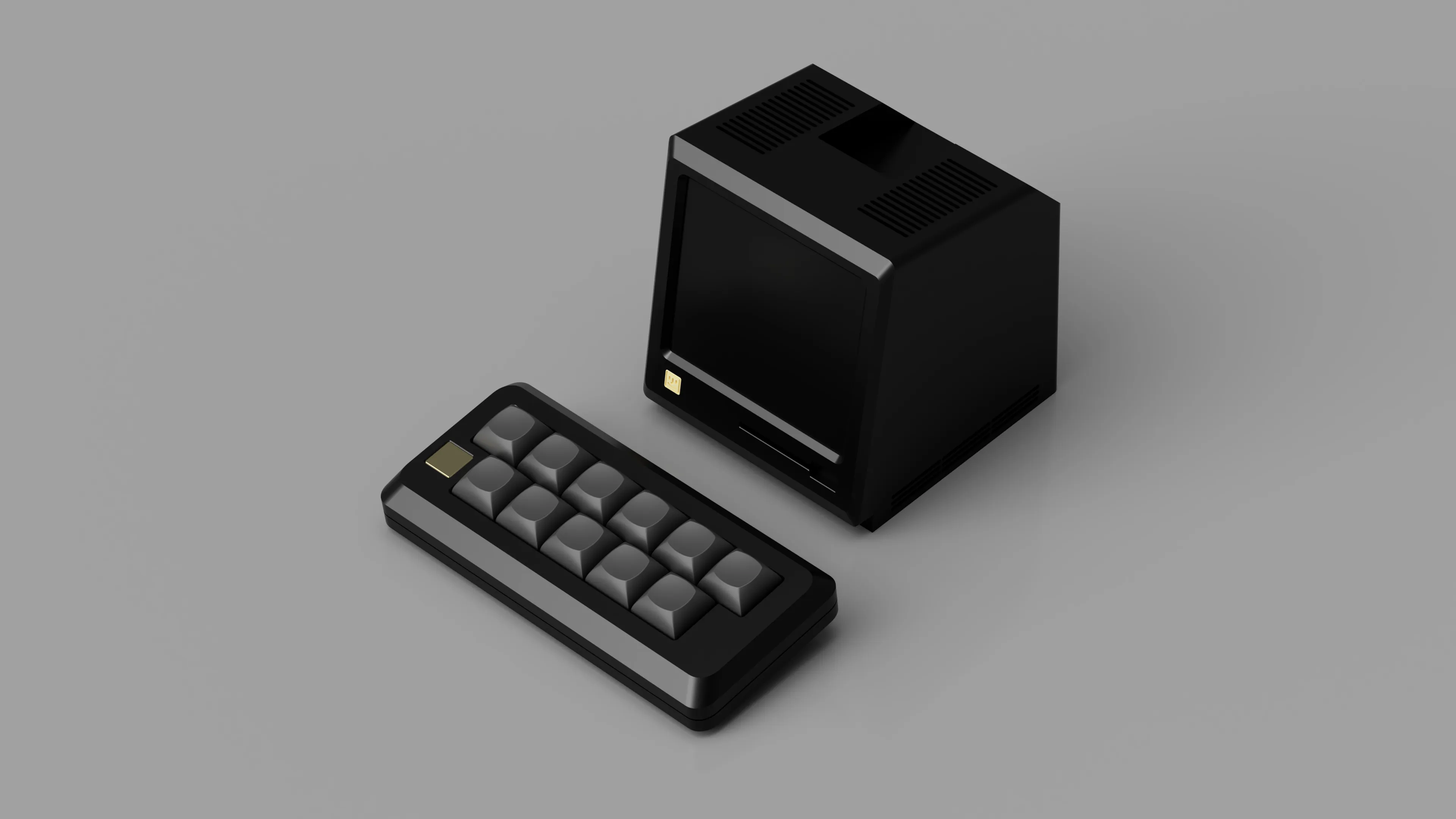

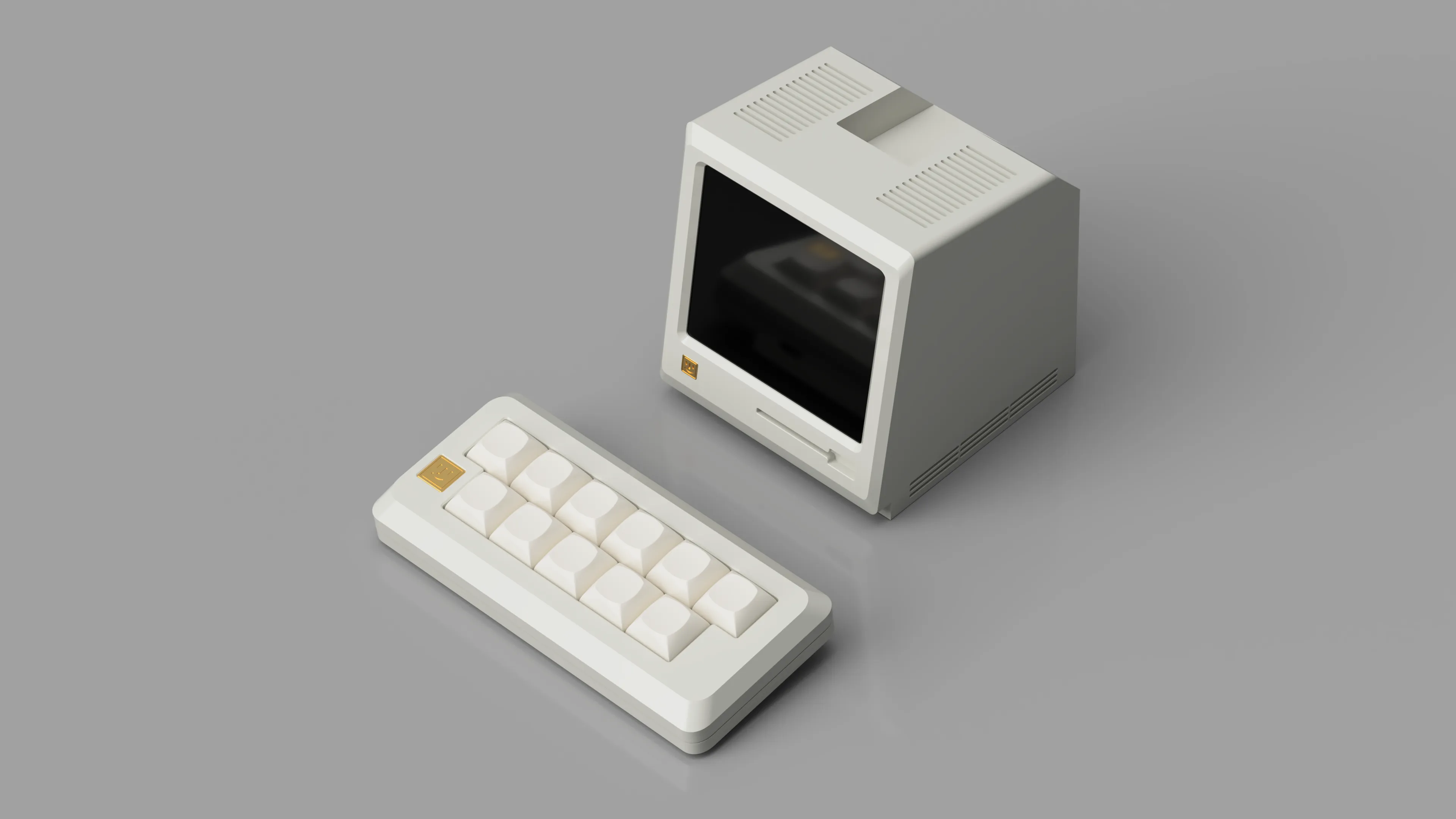

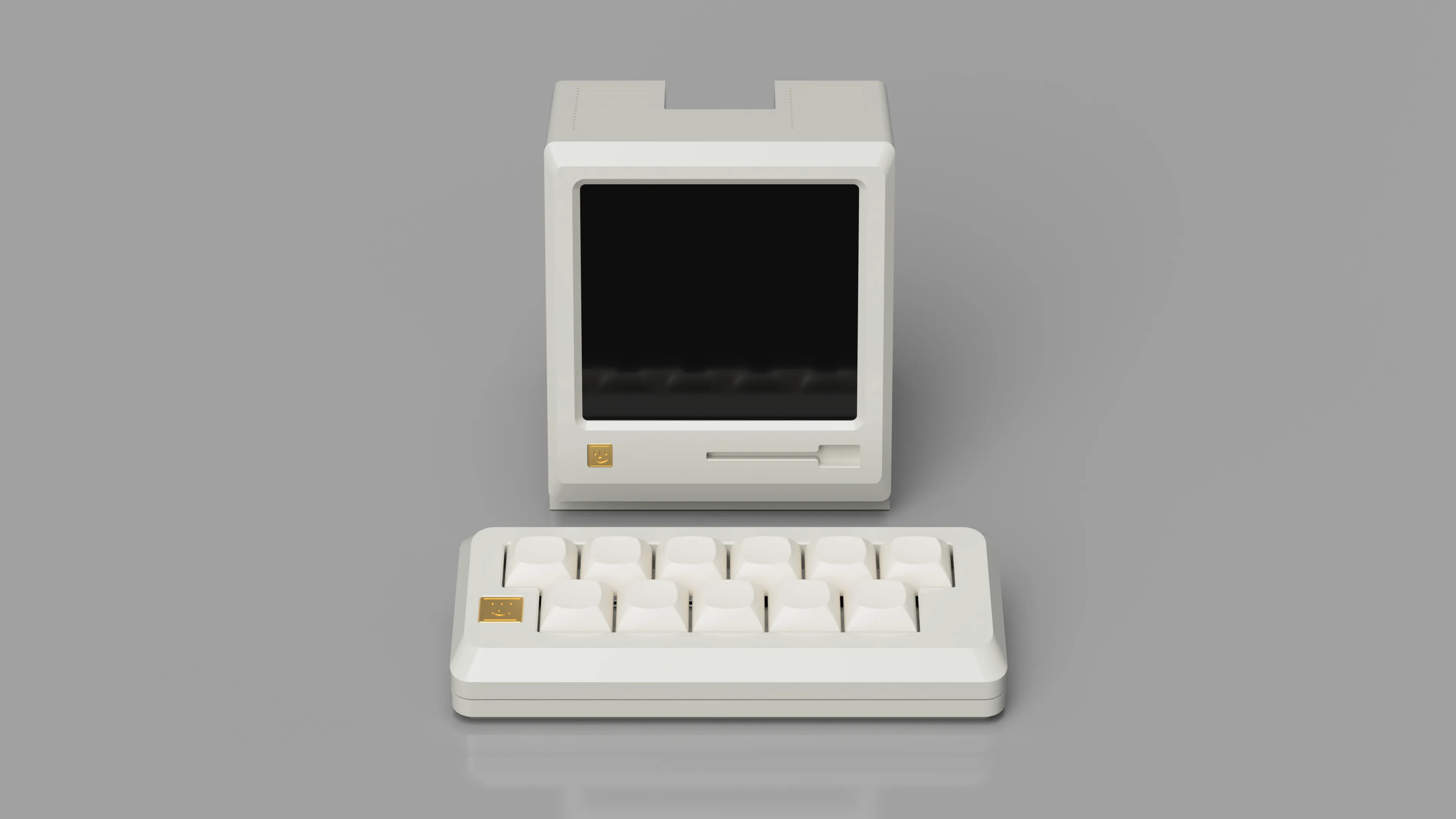

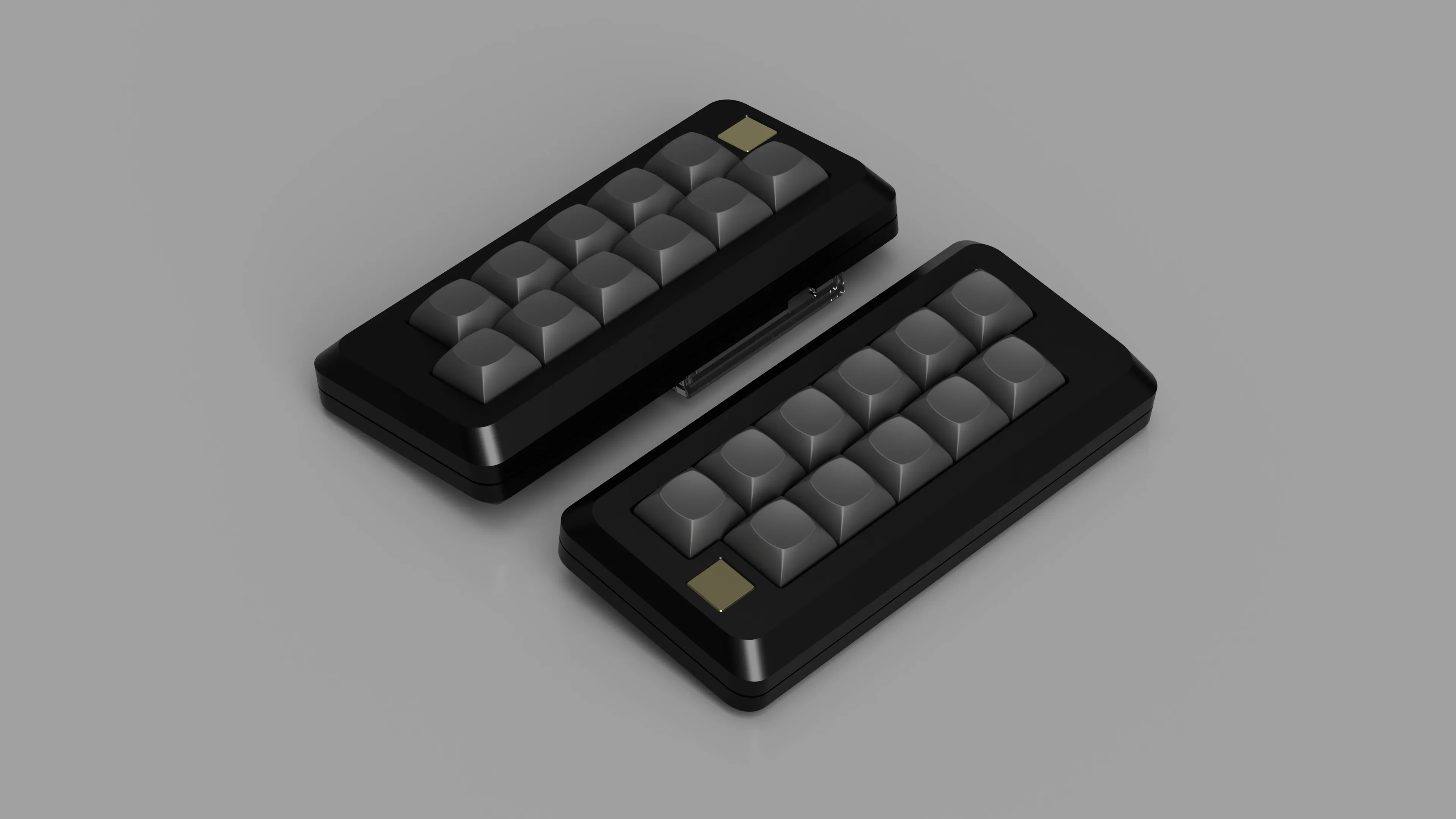

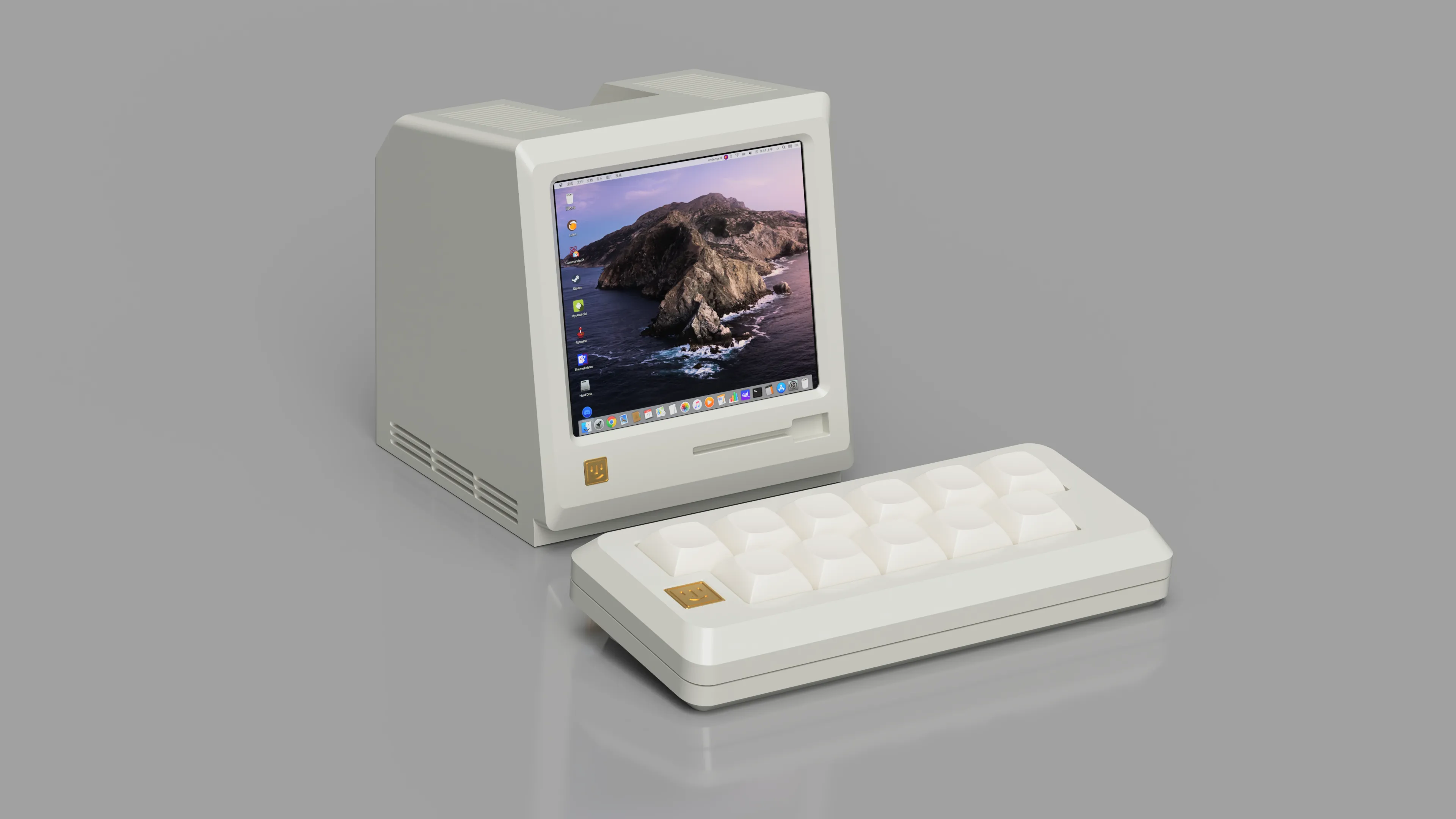

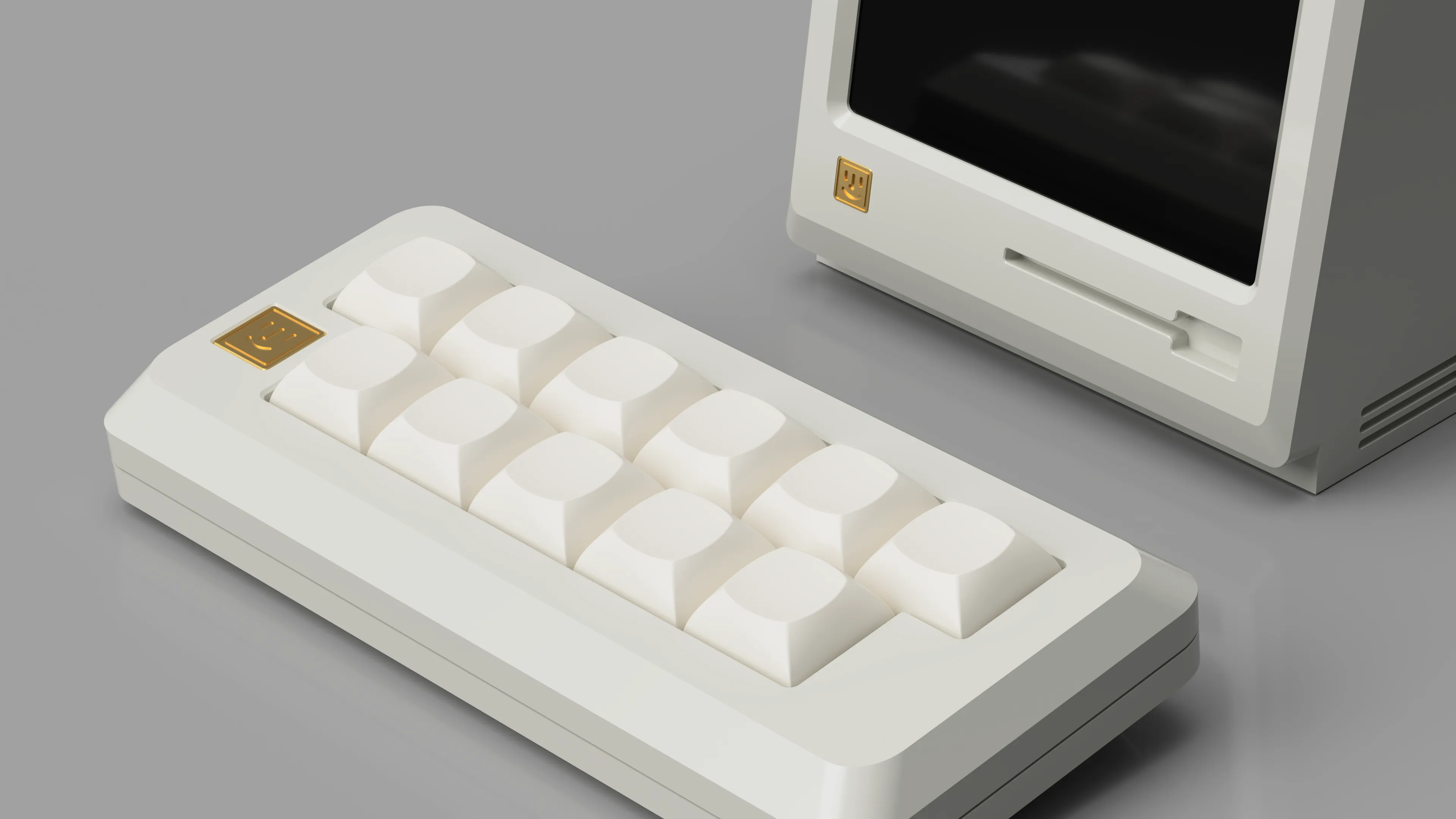

C11 - Macro Pad Keyboard
The C11 is based on the M0110, the keyboard that came with the original Macintosh, and is a tribute to the original Mac in the same style as the viewedge (another of the author's design). The design takes into account the current aesthetic and creates a more practical, ultra-mini keyboard. Cary_works is a custom keyboard studio from China whose tribute series (the DCR keyboard to IBM and the VC mini-monitor to Apple M0001) have gained good sales and reputation for their design and workmanship.

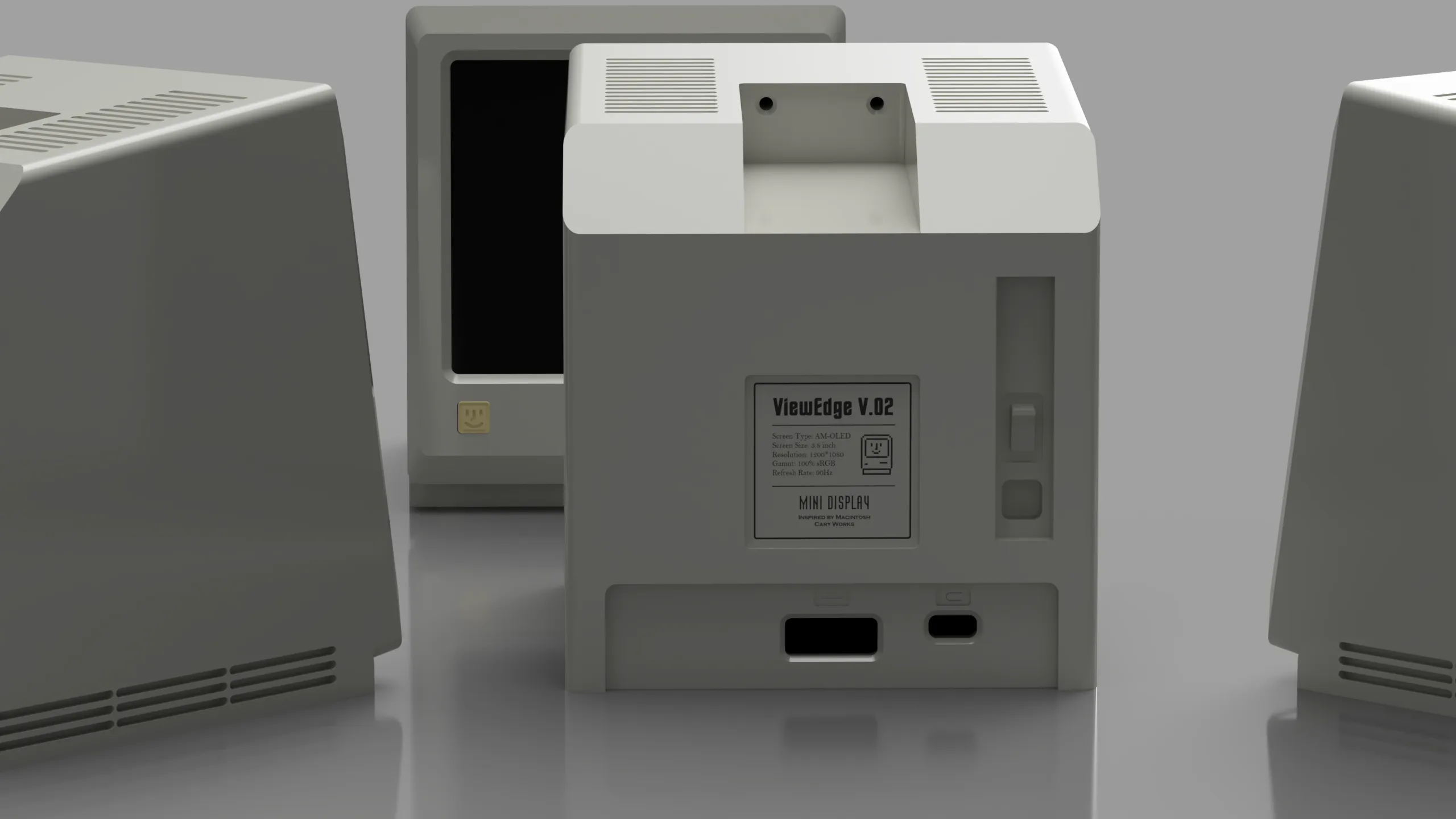

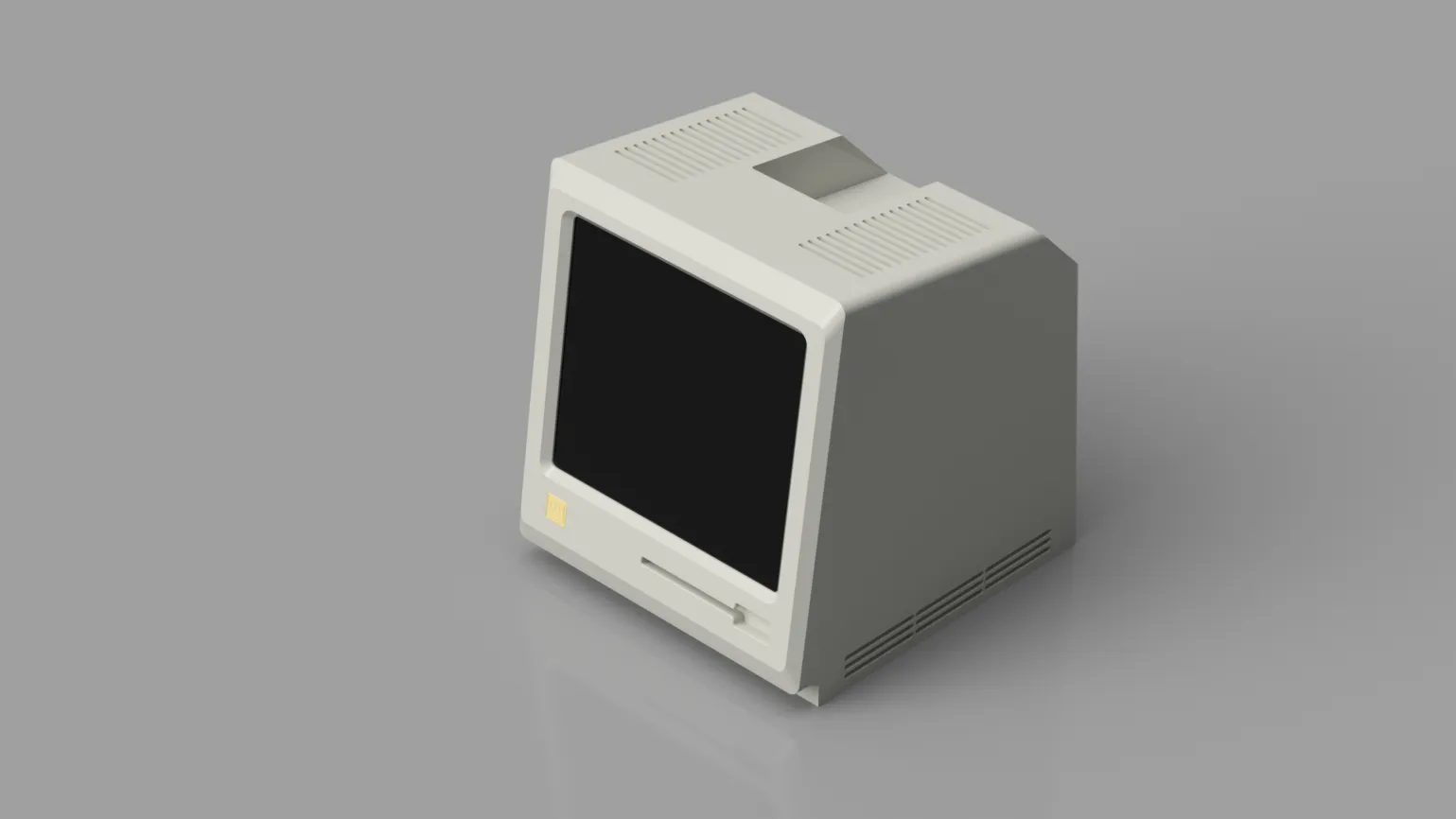

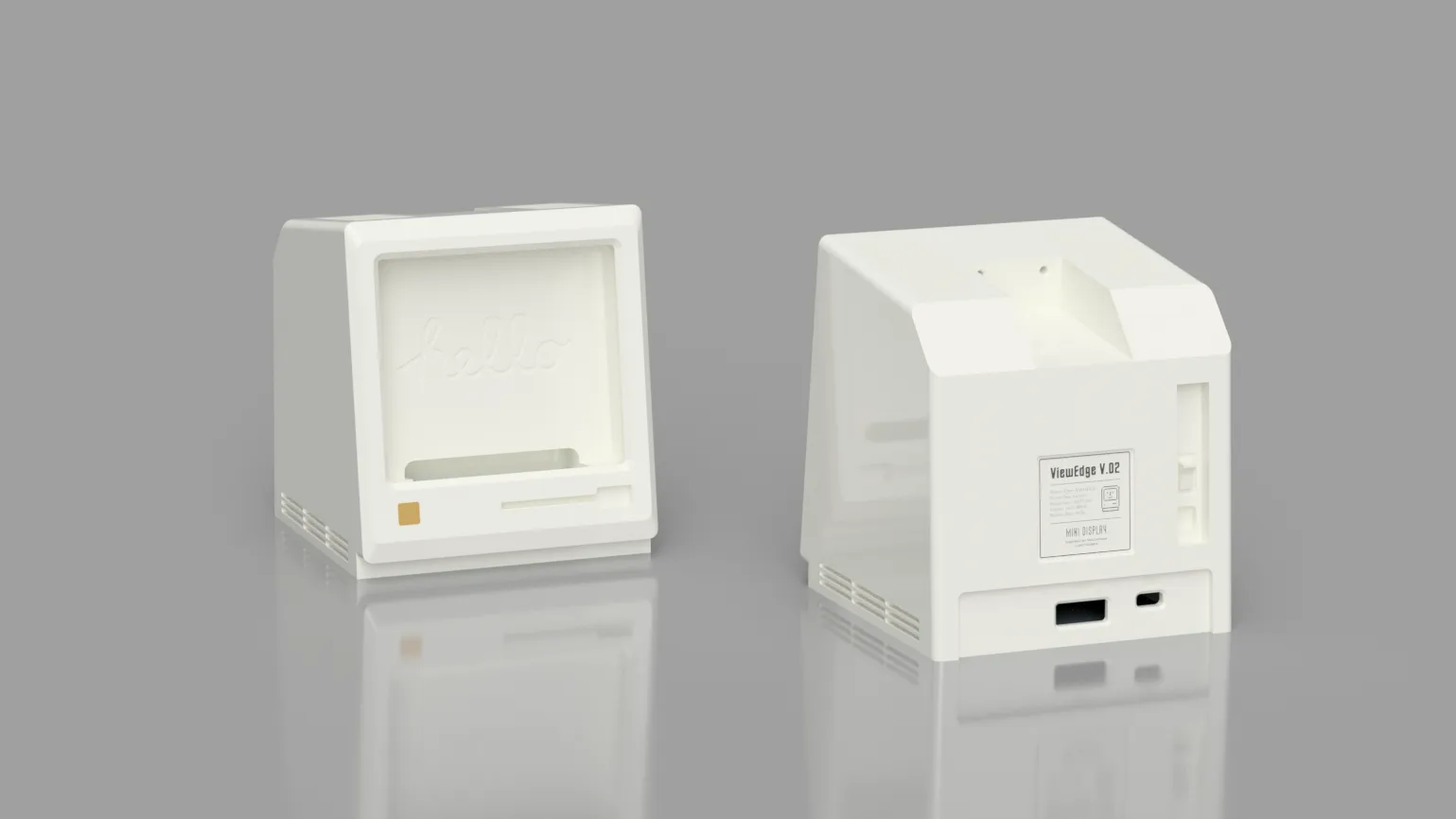

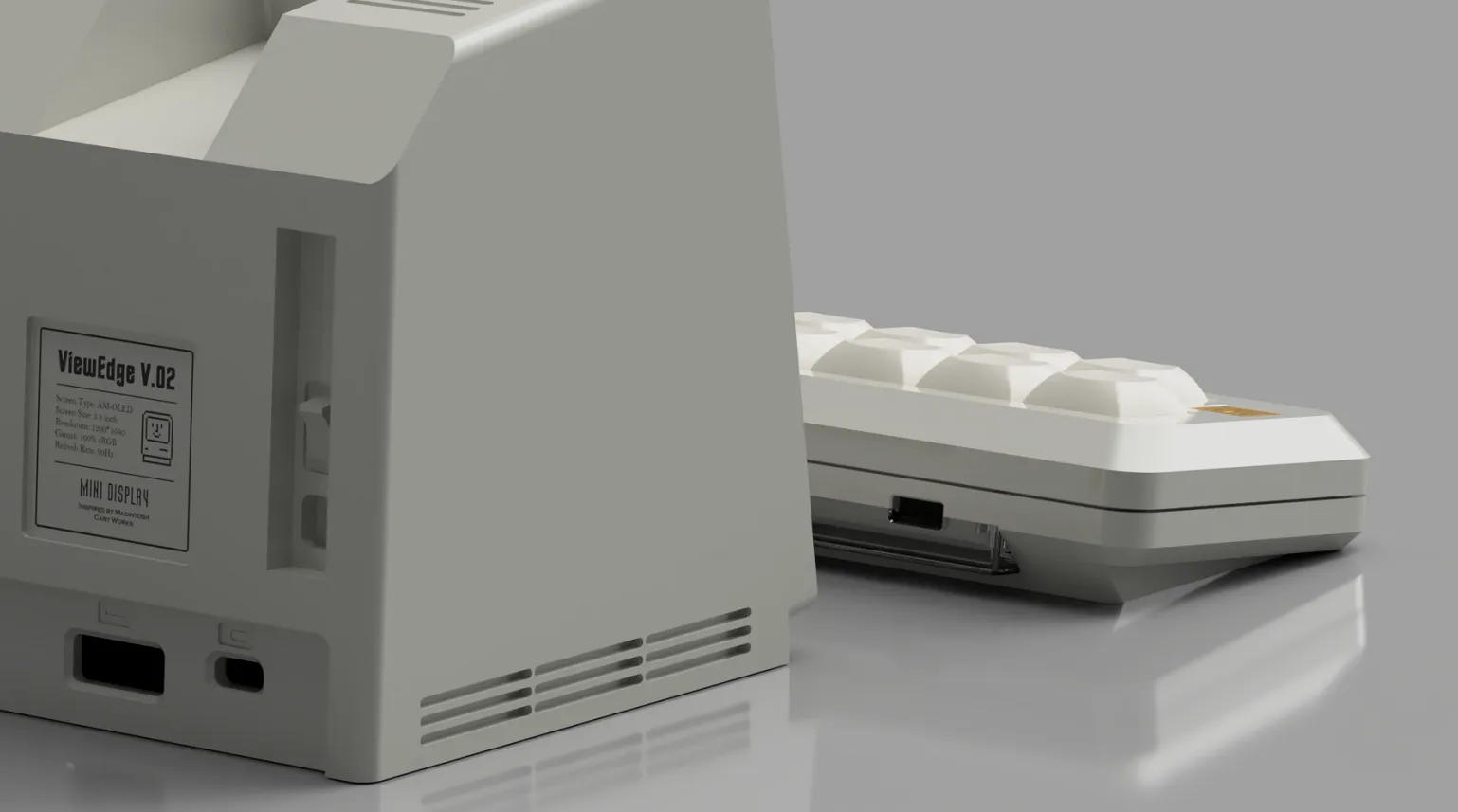

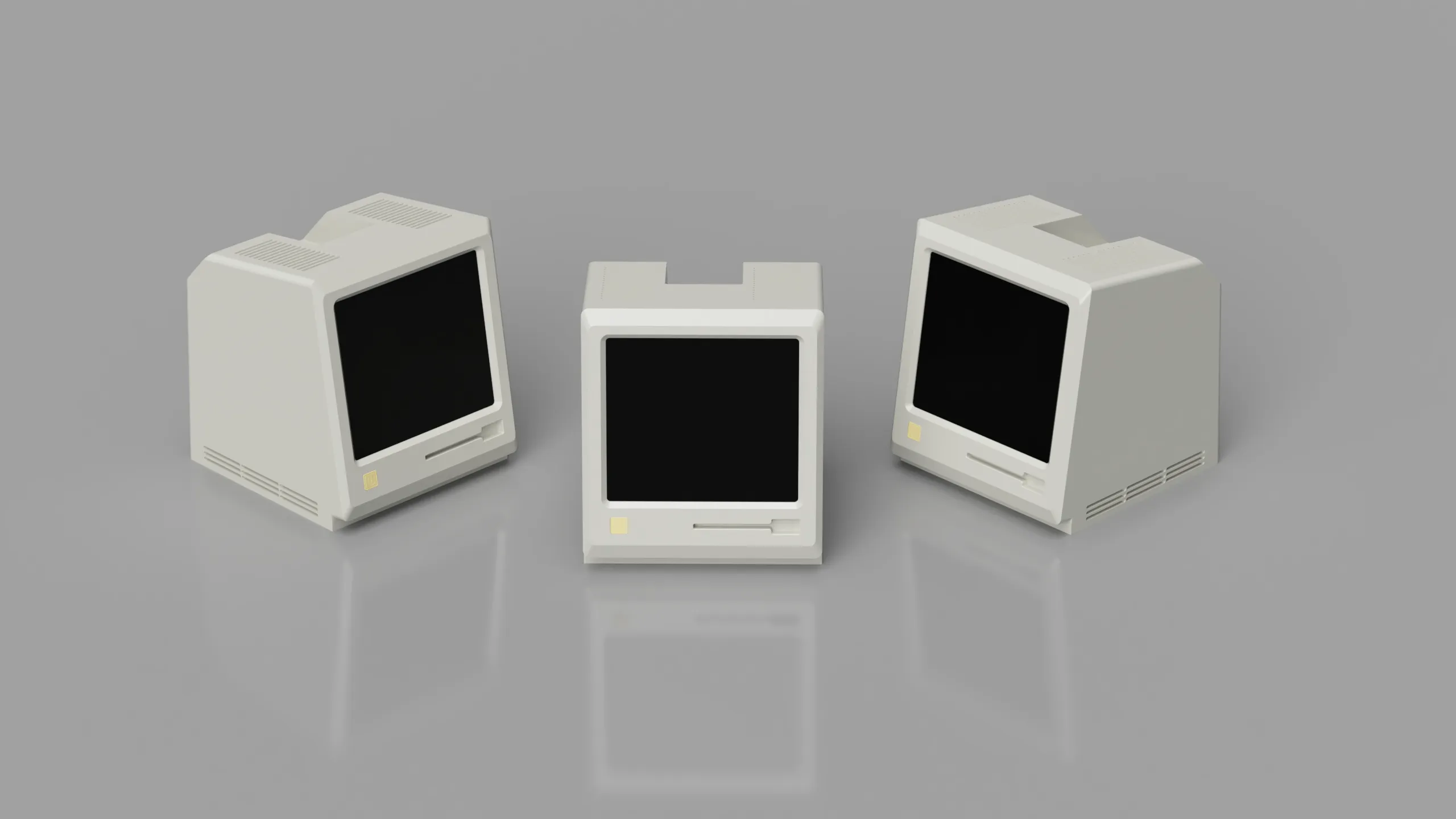

ViewEdge Details
- Super Mini Size Monitor
- Inspired by the original Macintosh
- High Quality OLED Screen
- Copper base counterweight and nameplate
- Packaged in an Ammunition Style Box
- Designer: Cary Works
ViewEdge Specifications
- Screen Type: AM-OLED
- Screen Size: 3.81
- Resolution: 1200*1080, 423PPI
- Pixel arrangement: vertical RGB strip arrangement
- Color gamut: 100% sRGB
- Frame rate: 90Hz
- Overall Dimensions: 93mm*100mm*105mm
- Power Interface: USB Type-C
- Signal Interface: Standard HDMI
- Materials Used:
- Aluminum Parts: 6063 Aviation-Grade Aluminum
- Copper Parts: C36700 Brass
- Surface Finish:
- Copper Parts: Transparent plating, anti-oxidation
- White Parts: EP-White
- Compatibility: Intel Core Graphics, Nvidia & AMD graphics, MAC/WIN OS
- NOT Compatible: AMD Core Graphics, PS, XBOX, NS and other host devices
- Produced by ALE

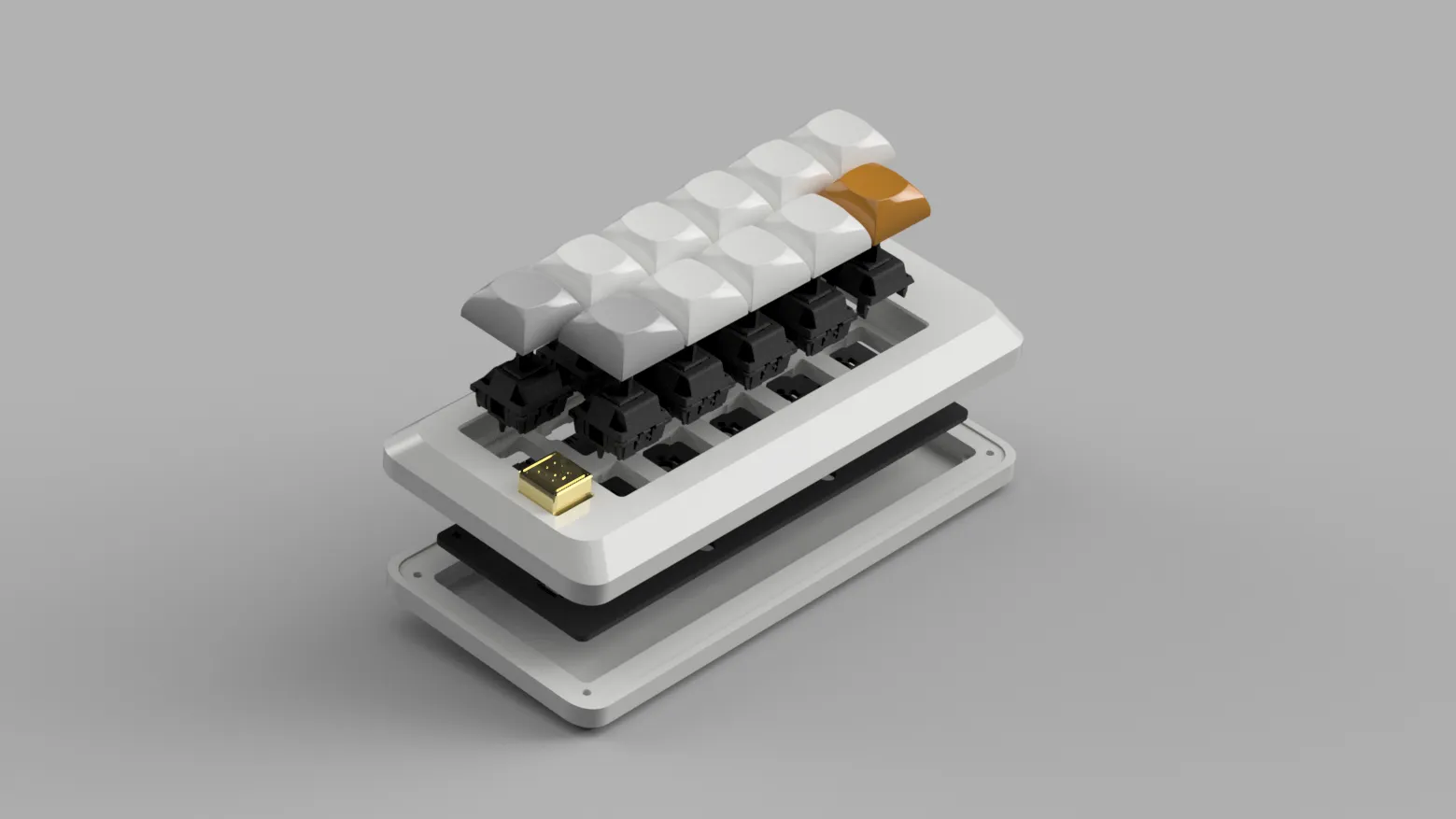

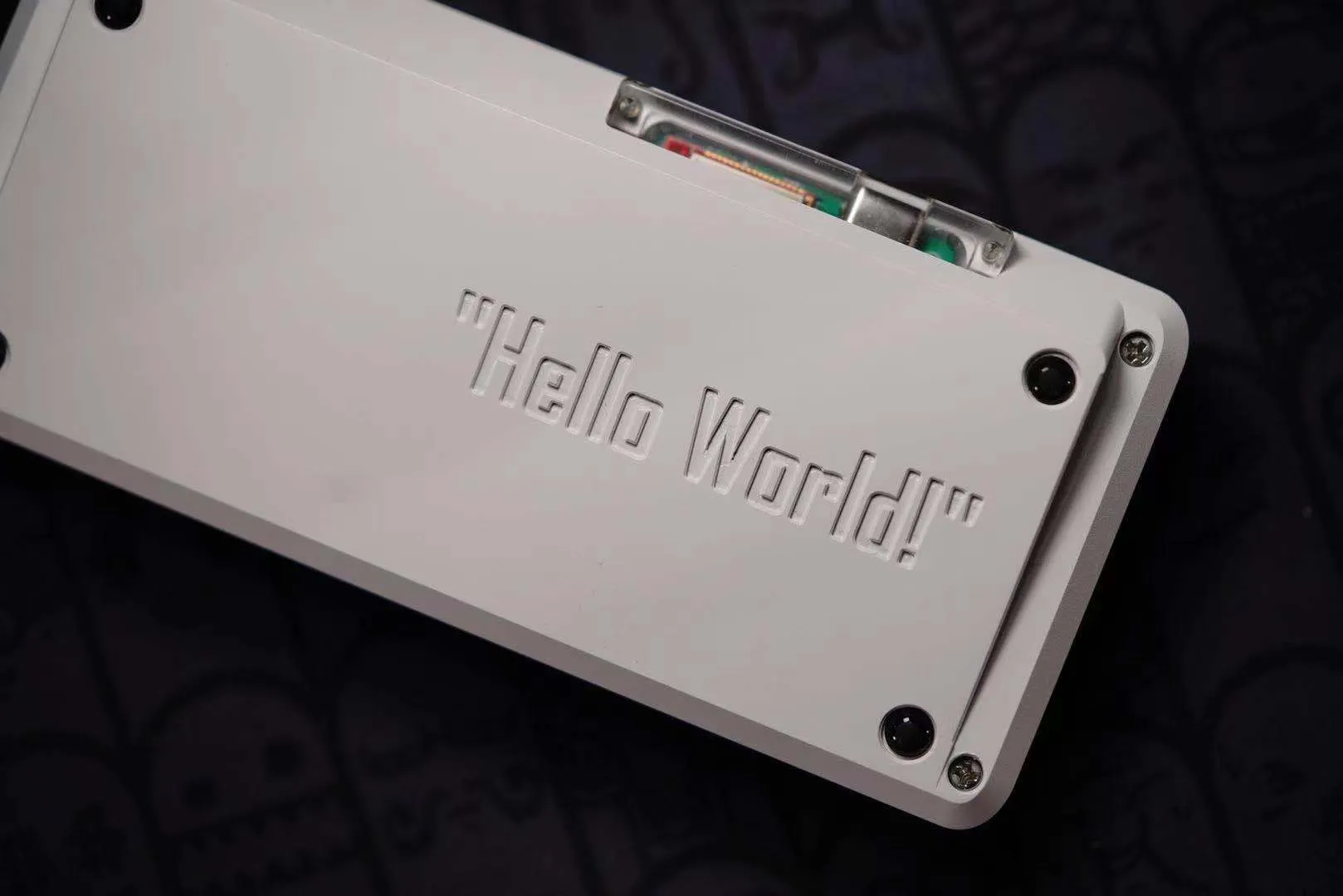

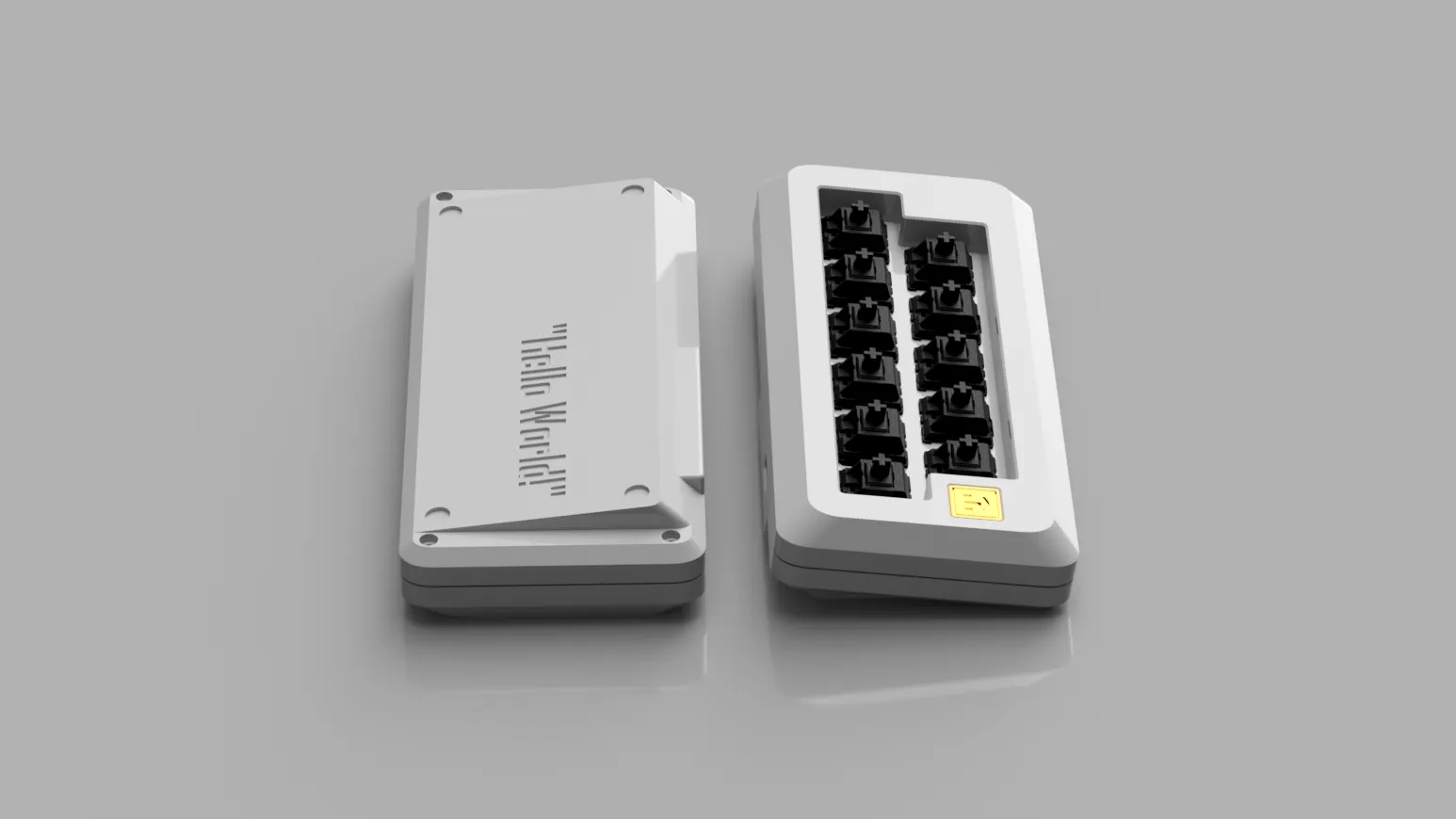

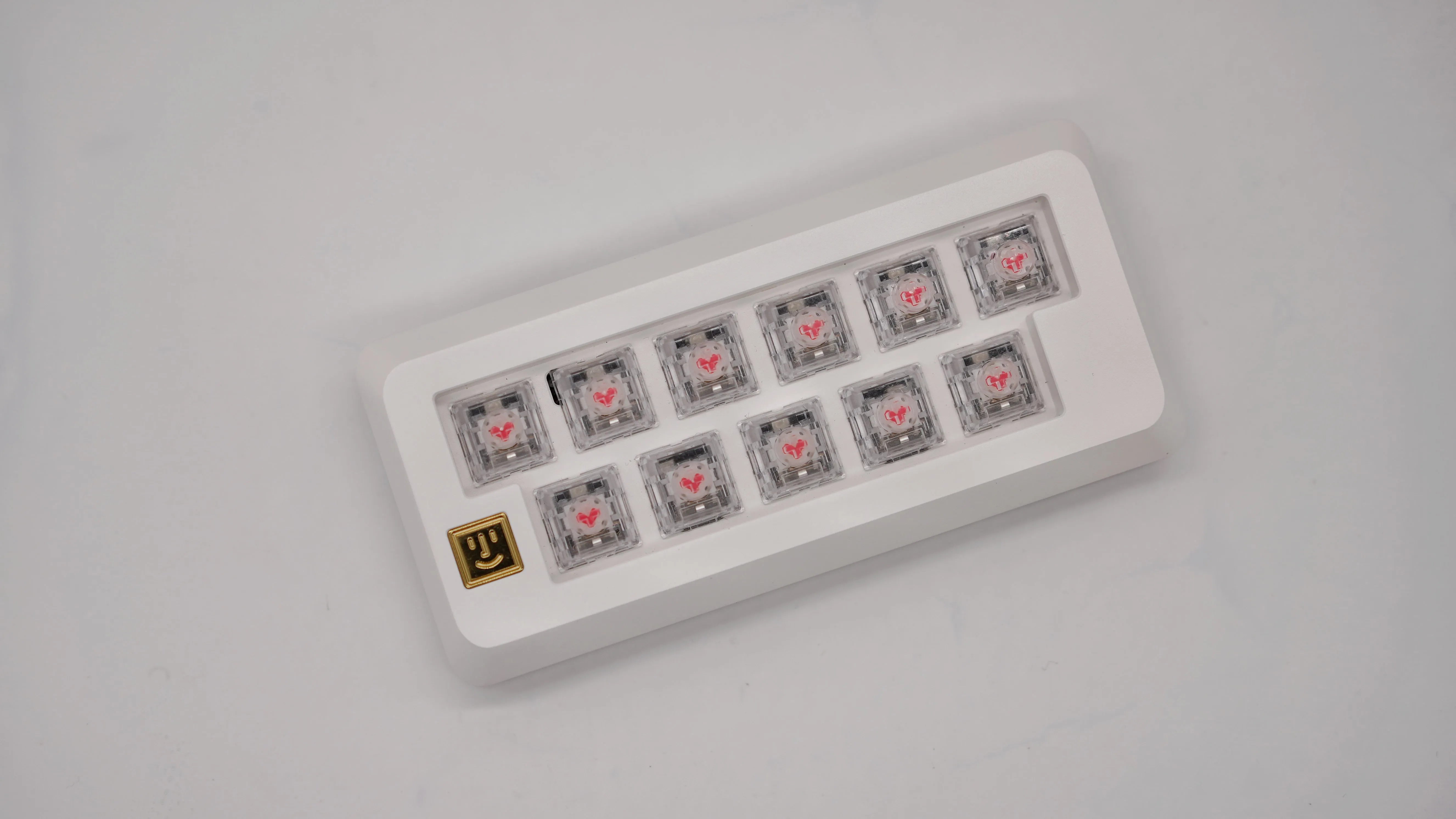

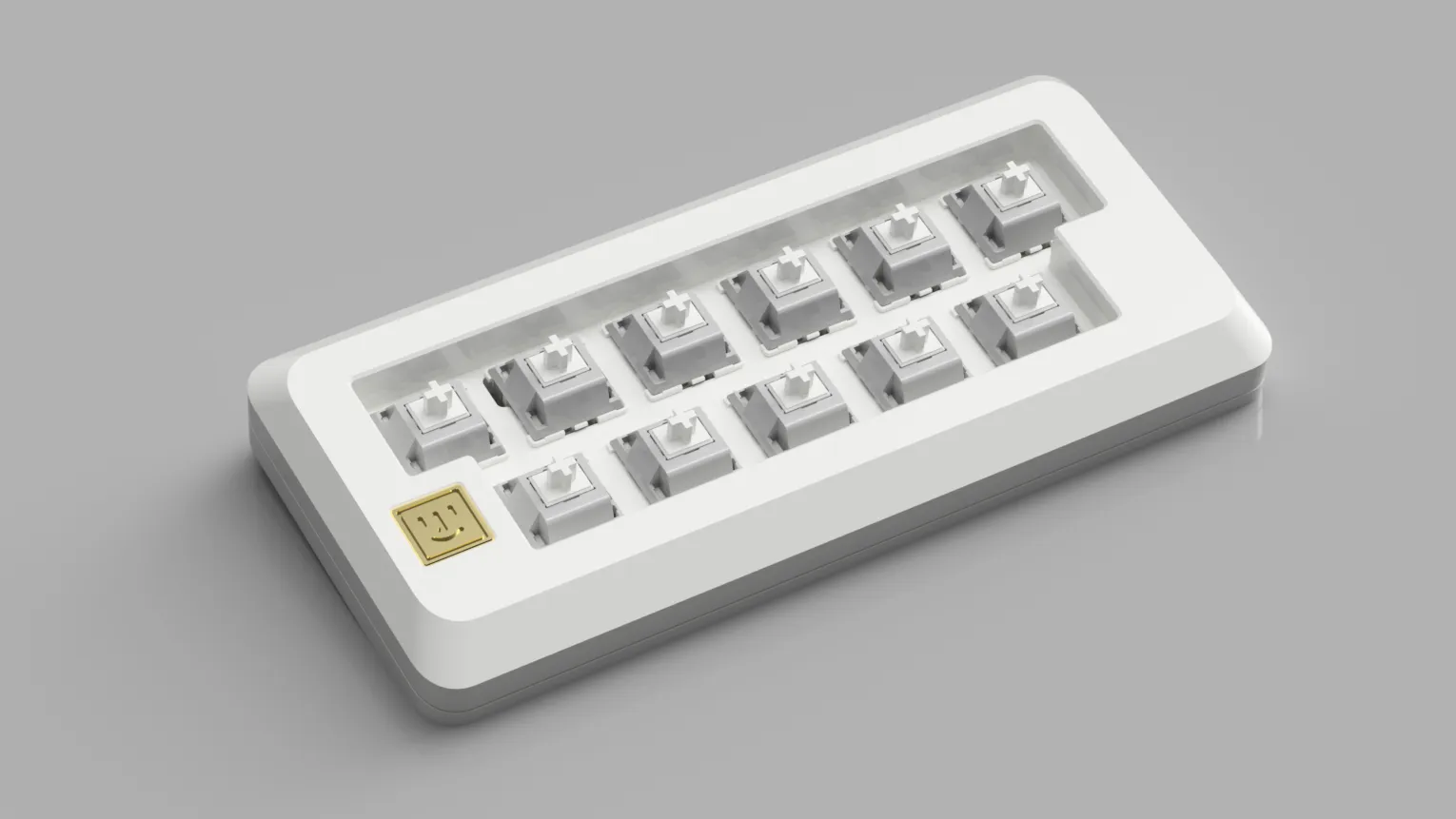

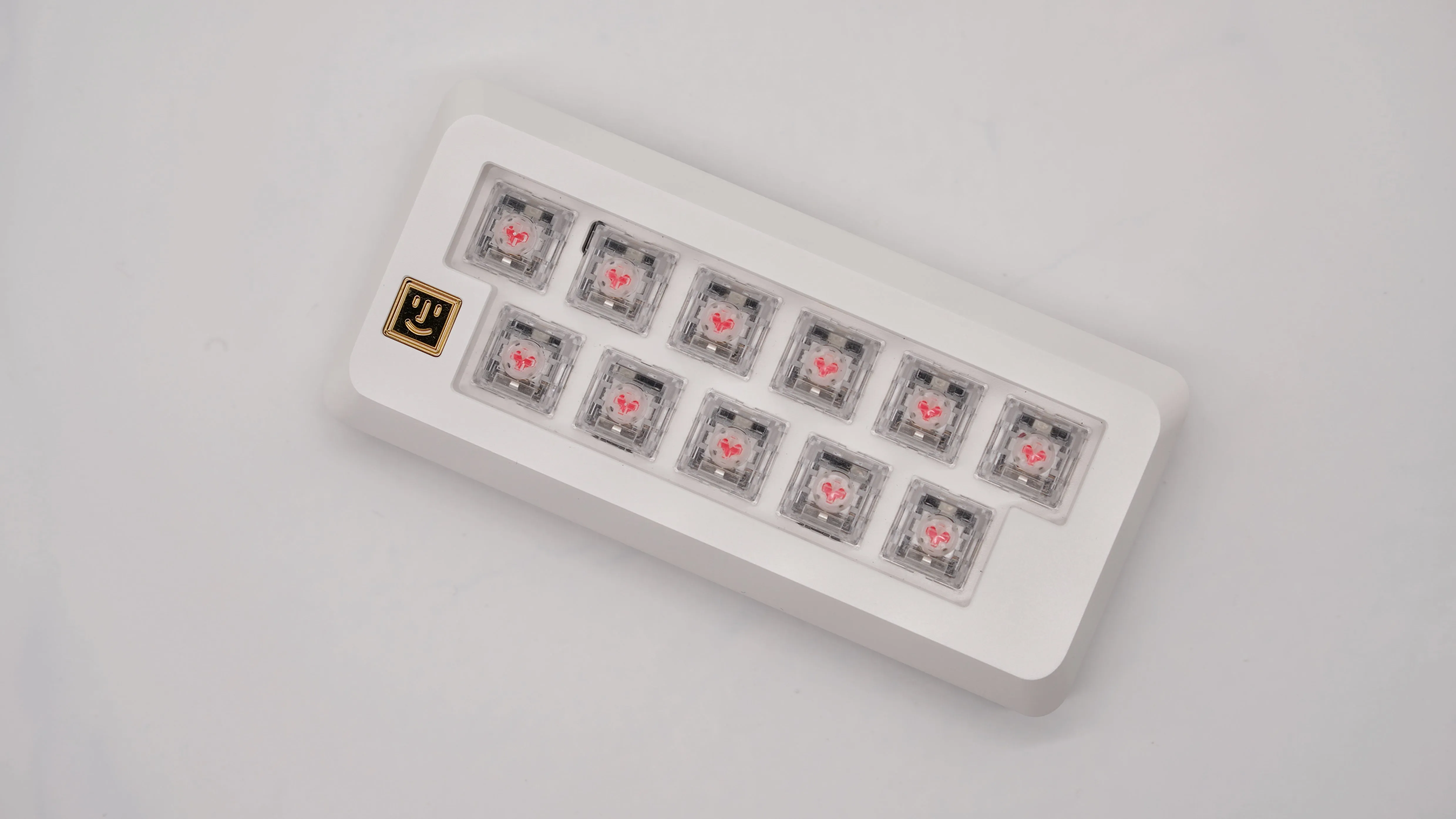

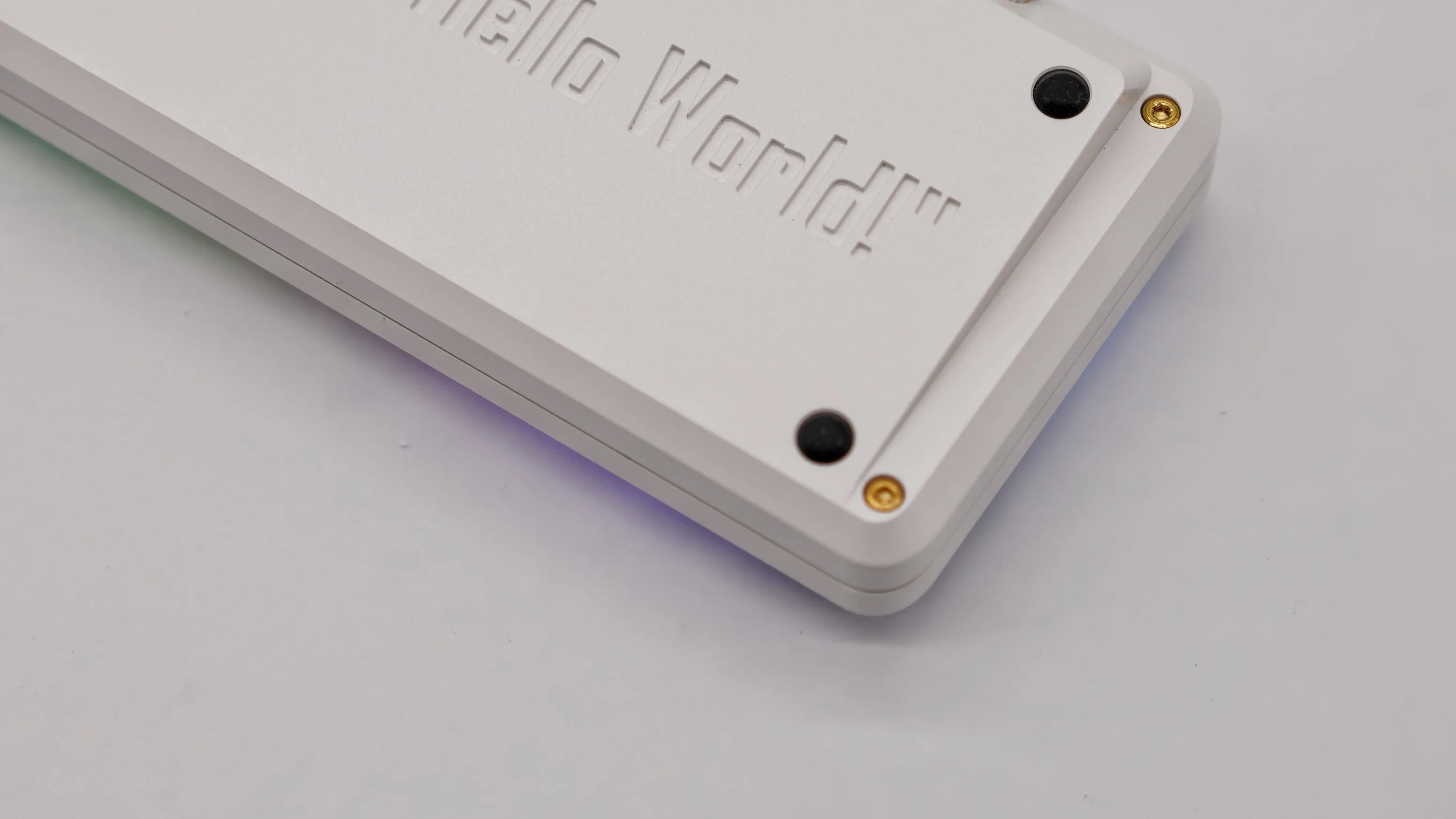

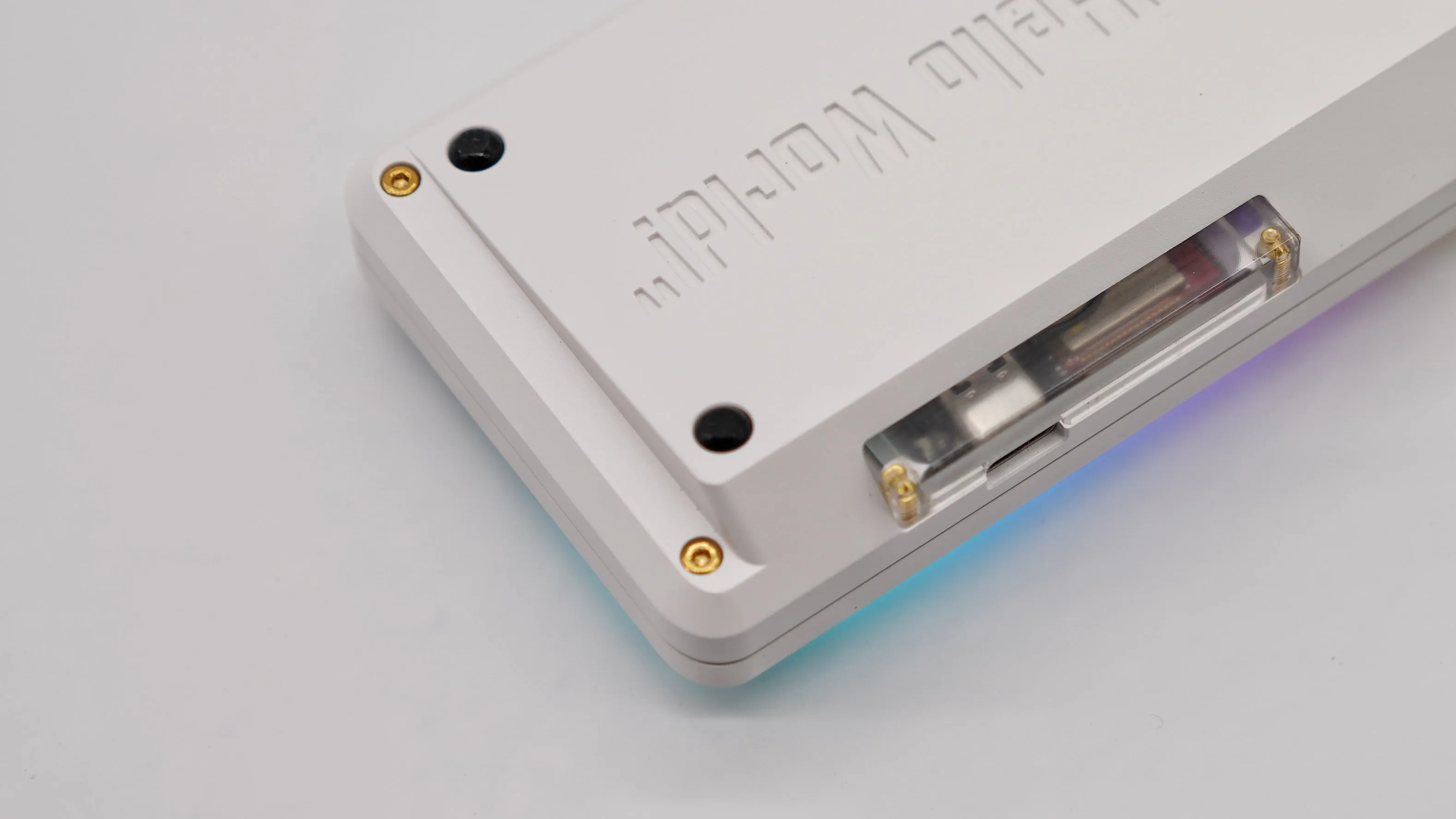

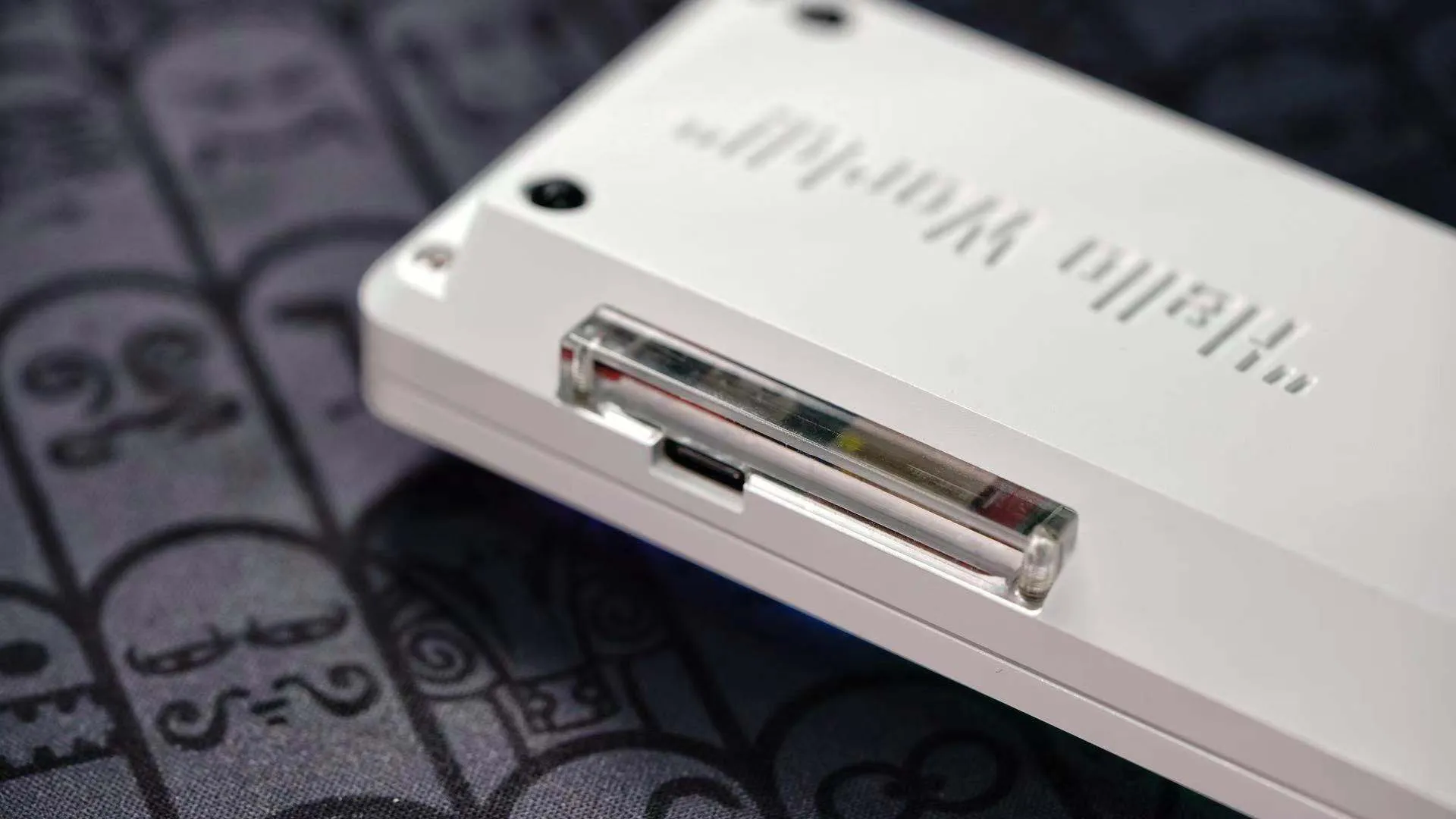

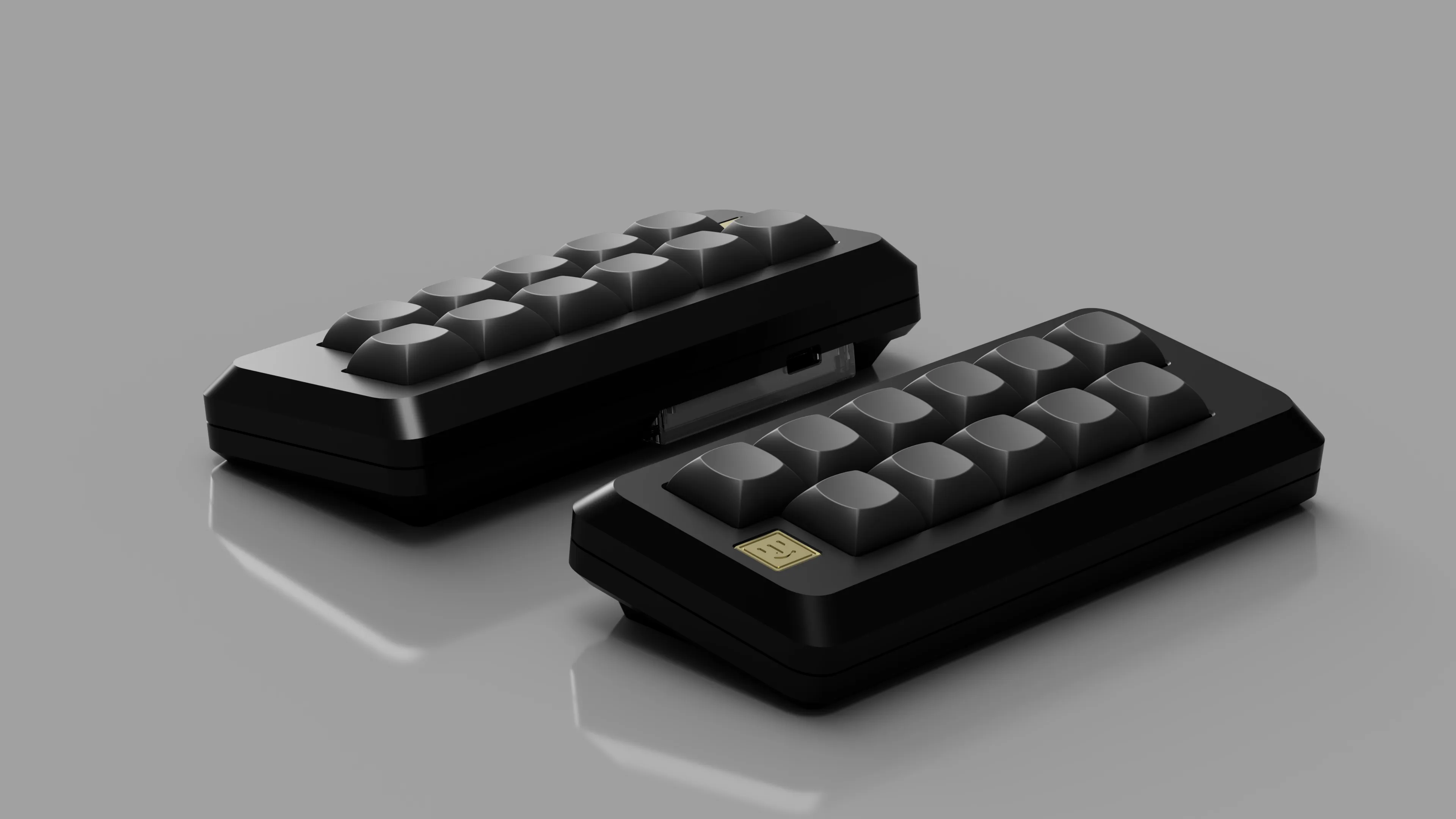

C11 Keyboard Details
- Ultra-mini Hot-Swap Keyboard
- Inspired by the Apple M0110
- Items Included: Case, PCB, 3U Satellite Shaft Wire
- Packaged in an Ammunition Style Box
- Designer: Cary Works
- Please Note: The C11 does not include switches or keycaps. Check out our and collections.
C11 Specifications
- Overall Dimension: 138mm*64mm*25mm
- Typing Angle: 7°
- Materials Used:
- Case: 6062 Aluminum
- Name Plate: C36700 Brass
- Surface Finish:
- Case: EP (electrophoresis) Black/EP White
- Name Plate: PVD

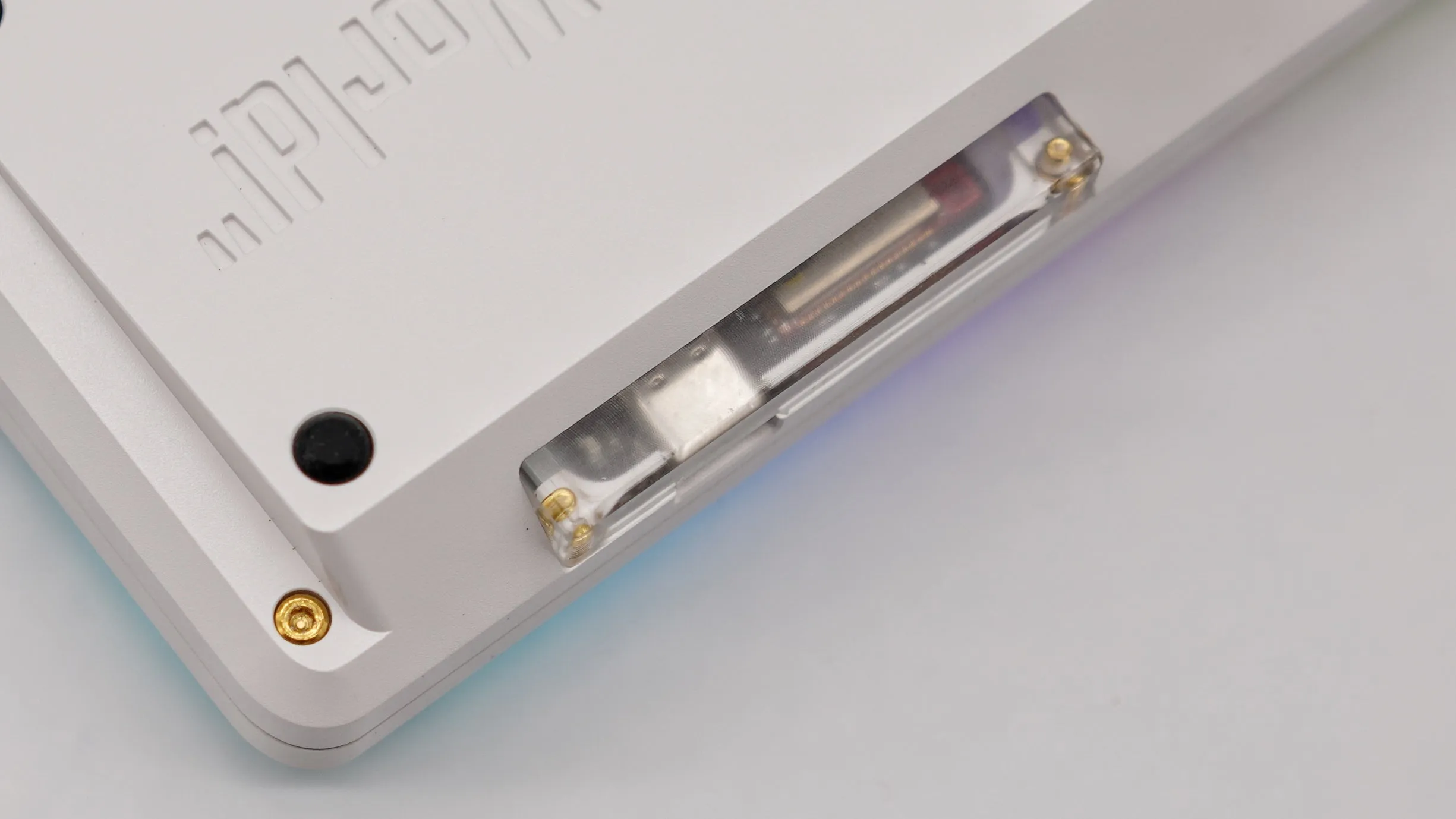

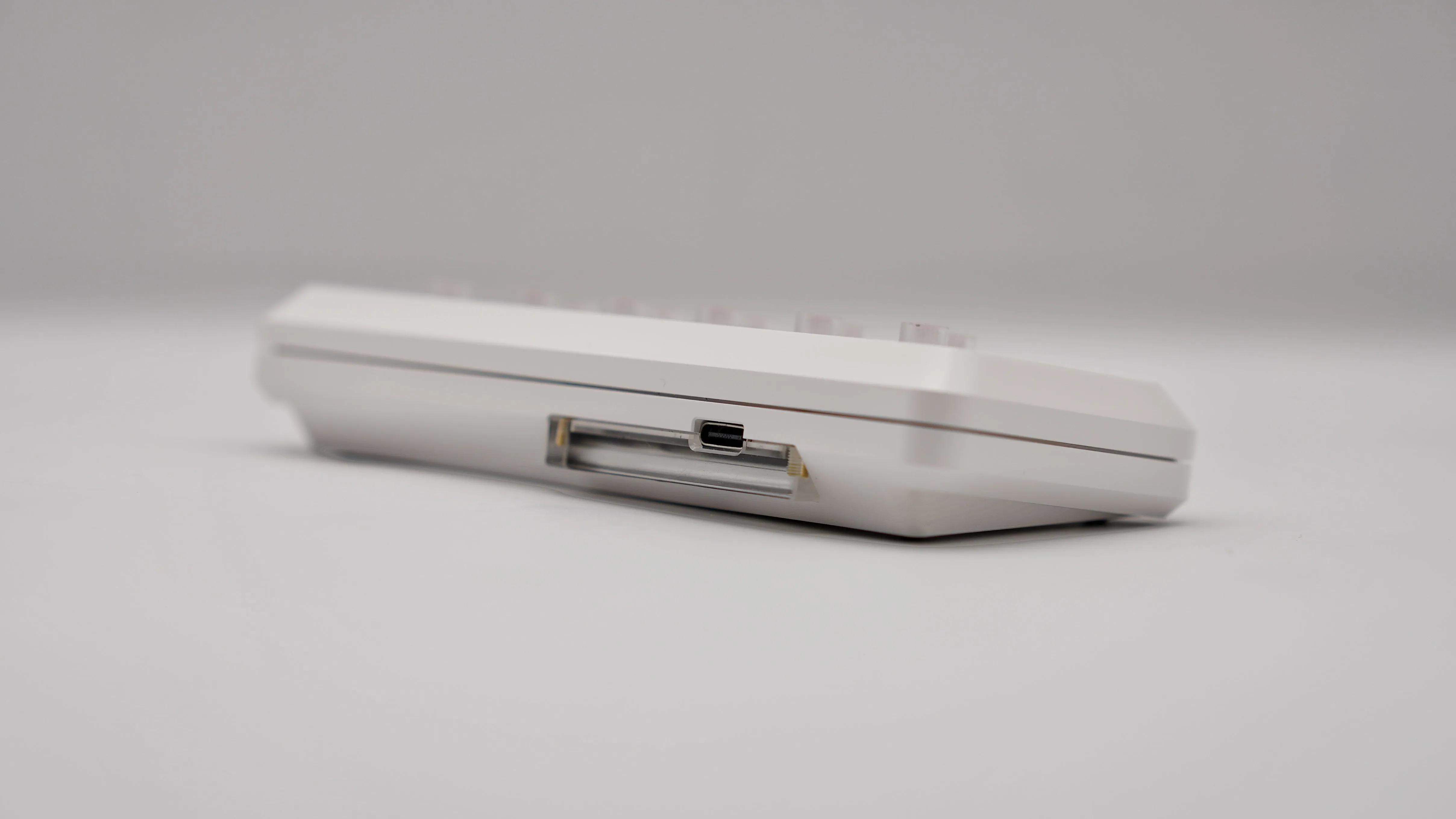

- Interface: USB Type-C

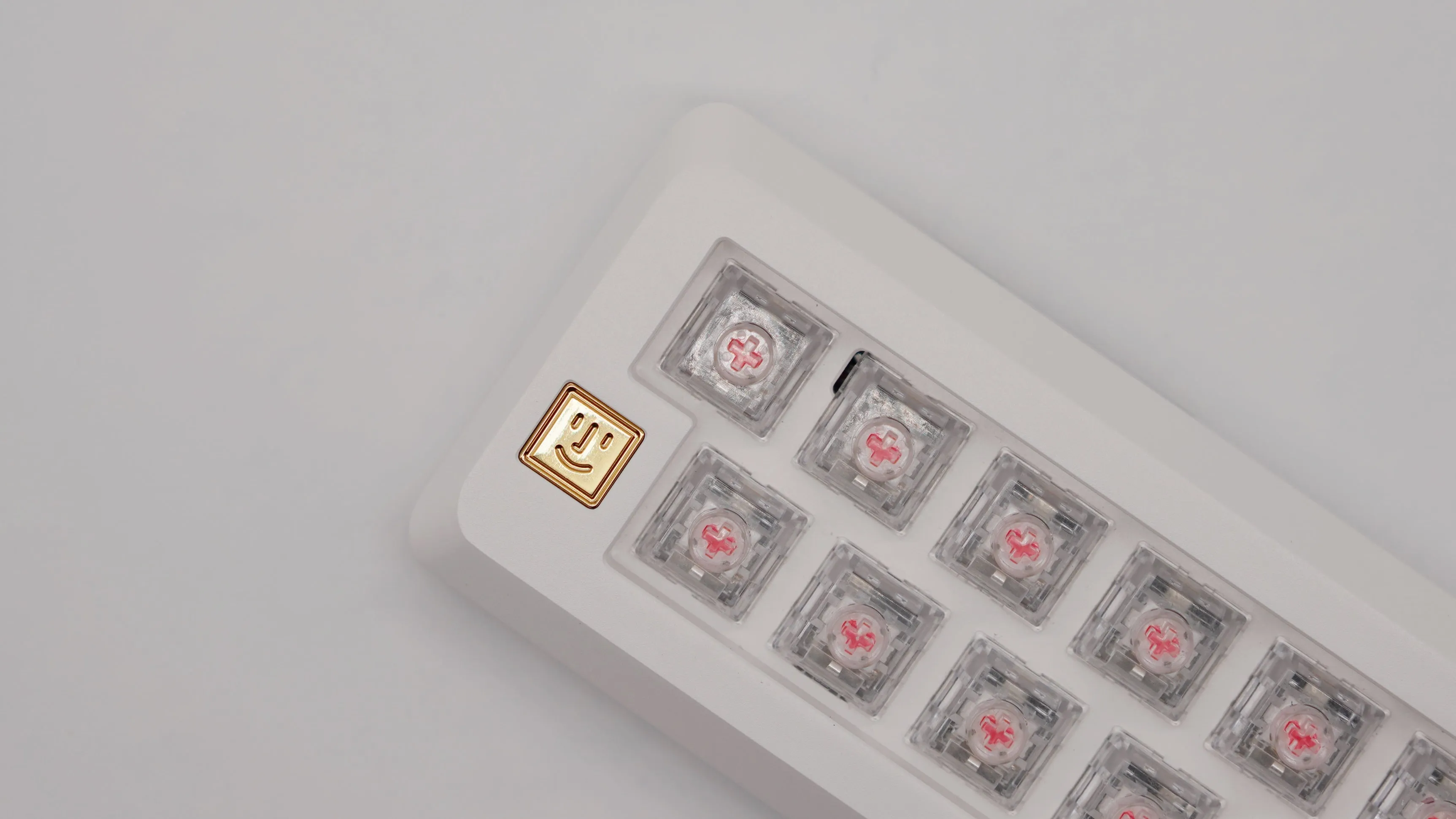

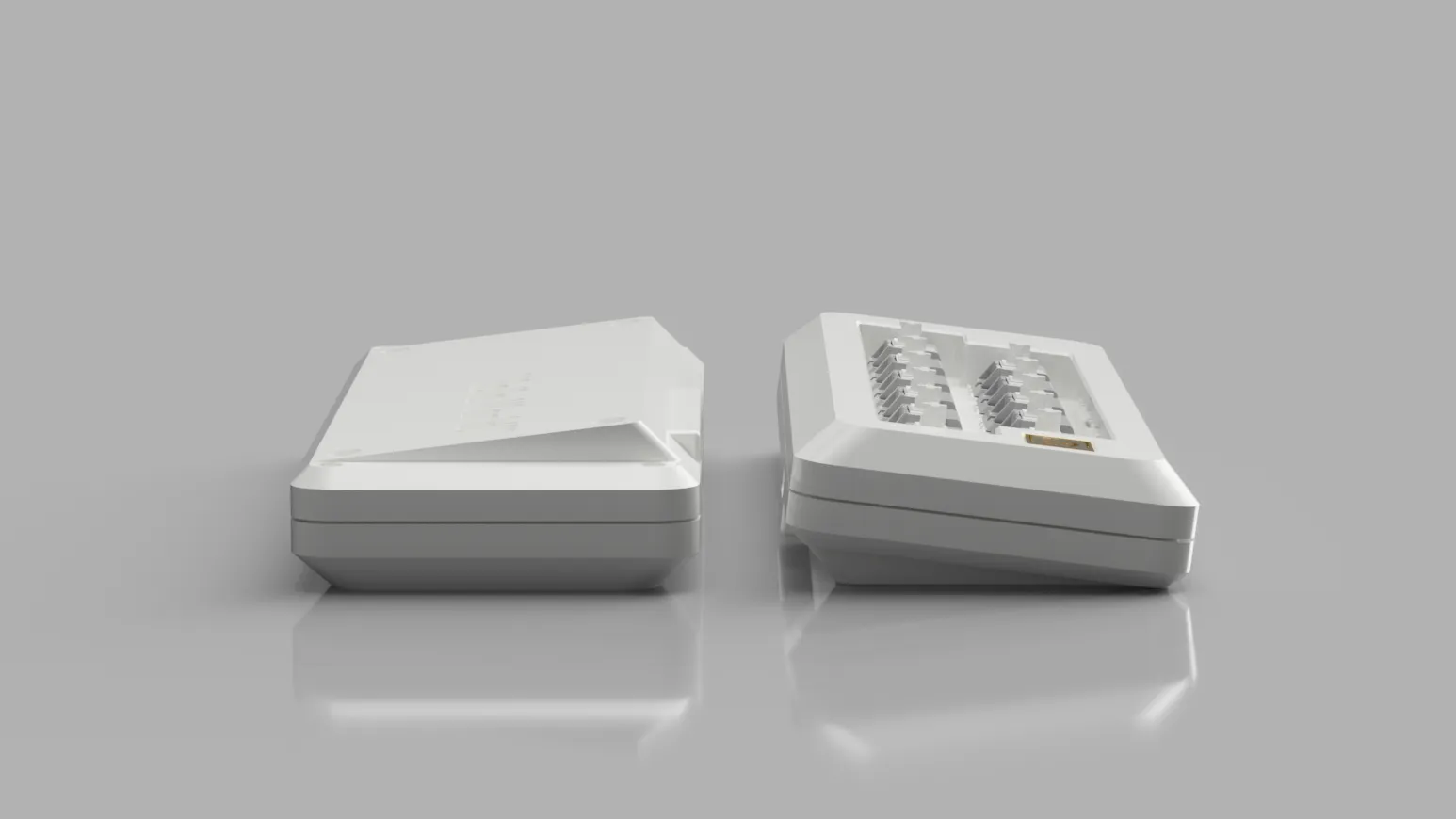

- Hot-swap switch sockets
- PCB: QMK compatible/VIA support
- Battery Capacity: 800mAH
- Bluetooth: 5.0 (can switch between 2 connected devices)

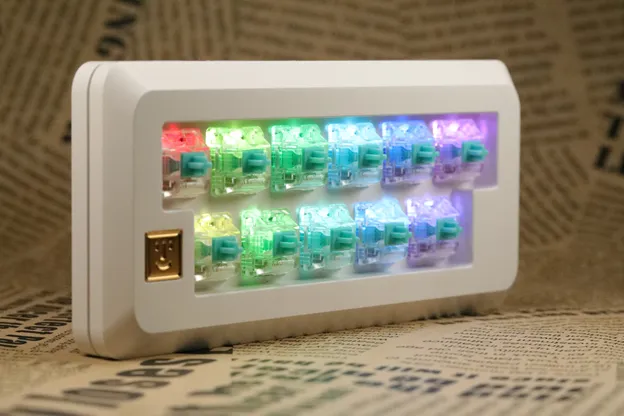

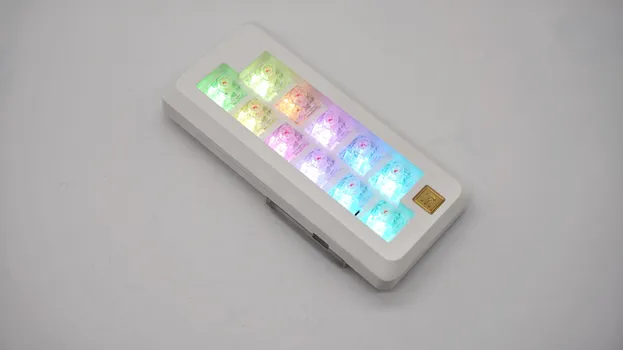

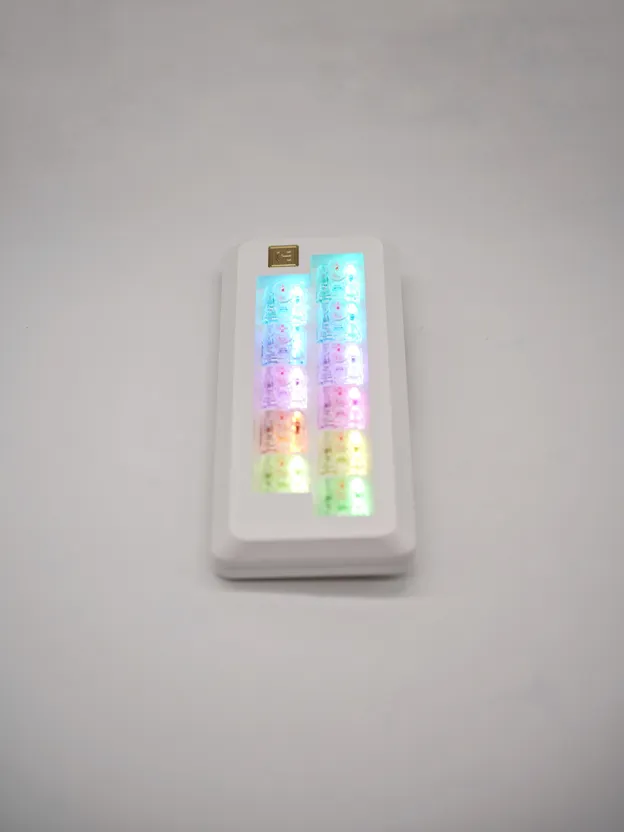

- Lighting: RGB
- PCB Satellite Shaft
- Produced by ALE

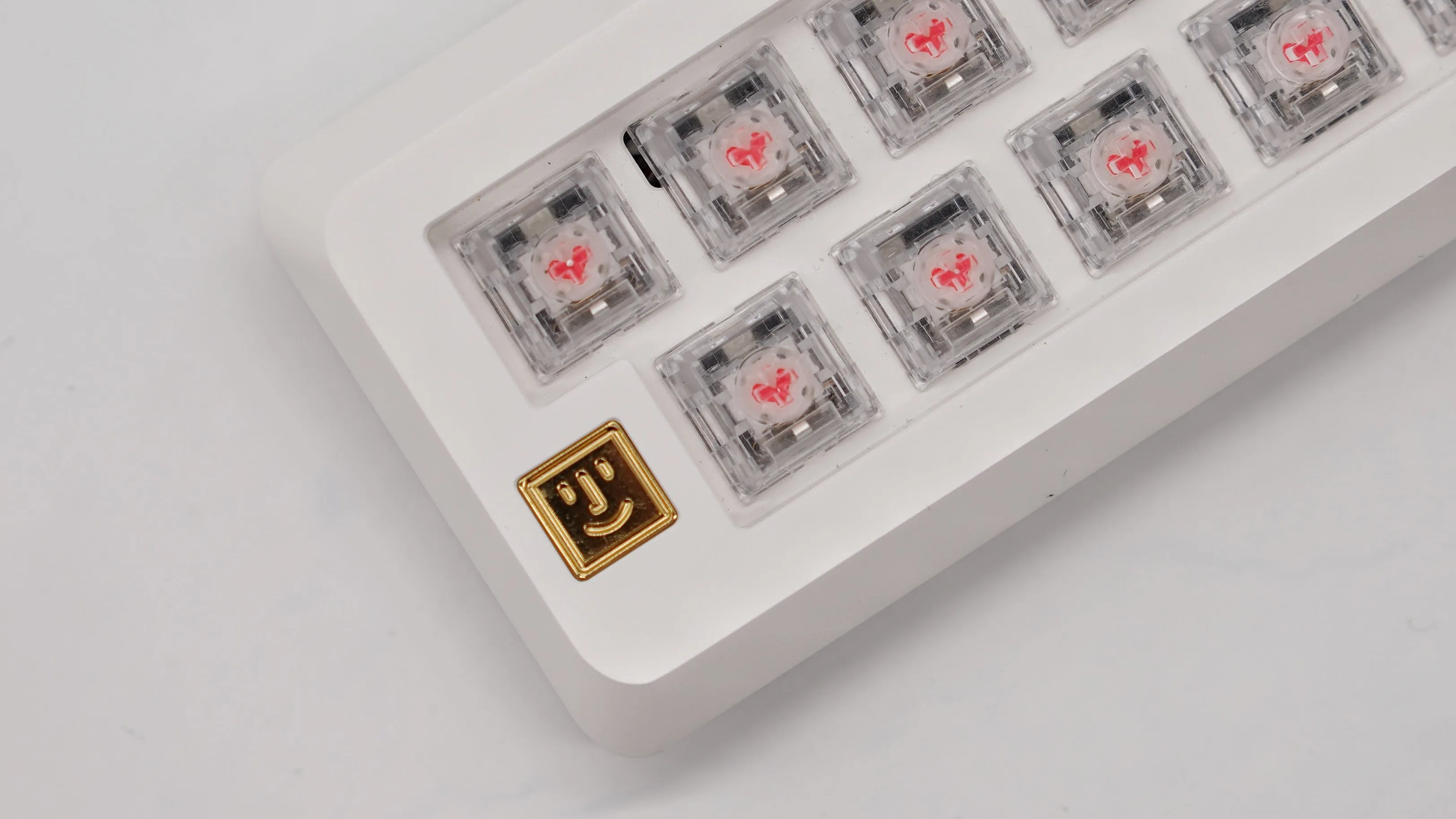

C11 Blank Name Plate
- Made of C36700 Brass
