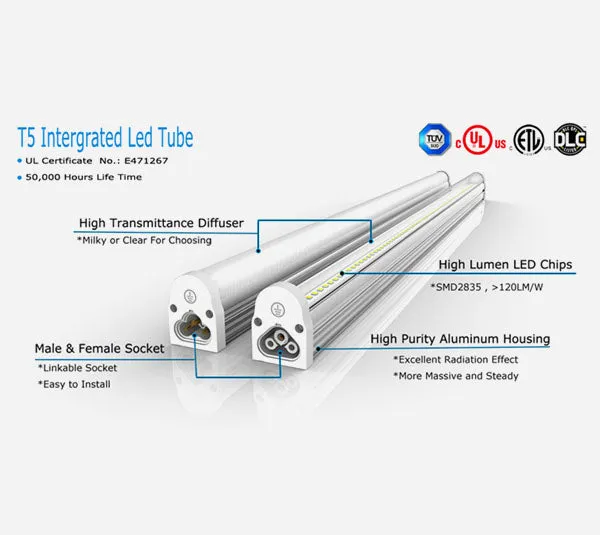

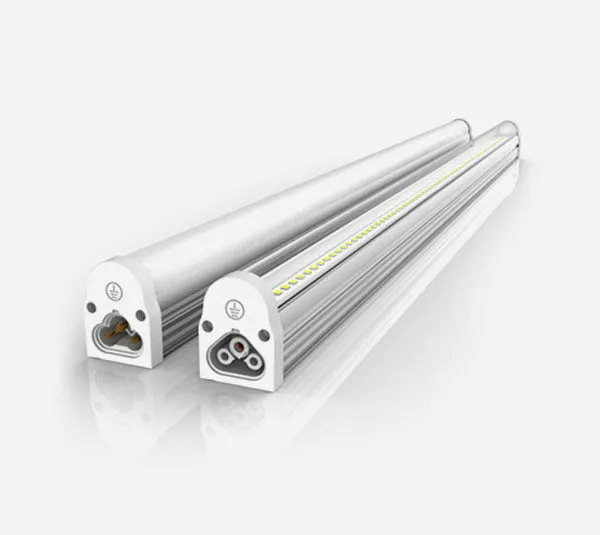

T5 Led Integrated Tube Light

Feature:

• Patent Male-female linkable design

• Seamless & No Dark in-line connection

• UL ETL DLC TUV SAA approved

• 0.8mm aluminum housing for excellent heat dissipation

• Heat protection system with excellent internal driver

• Easy replacement and installation with brackets


Applications:

• Replaces fluorescent NCF fittings,

• Warehouses, factories & food storage, gymnasium

• Car parks & sports facilities, Kitchens, shopping malls

• Technical Specifications

• Input Voltage: AC100-277V / AC100-240V 50/60Hz

• Total harmonic distortion: THD<19%

• Power Factor: PF>0.95

• Efficiency: 120-140LM/W

• Color Index: Ra>82

• IP Rating: IP40

• Life Span: 50,000 hours

• Lumen maintenance @6000h: >80%

• Switching Time: 100,000

• Operation Temperature: -20°C ~ 50°C

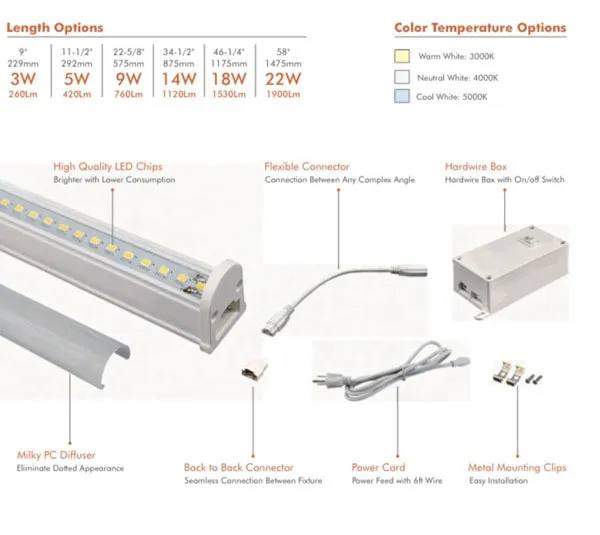

Options

-Functions: Normal / Triac Dimmable / ON-OFF Switch
-Connection Way: Lead in wire / M-F Connection / Power cord with Plug
-Installation Type : Standard Clip / Magnetic Clip / Suspending Kits

Product line drawing

Light distribution curve
