Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | XQ-400-RS |
| Connection Type | Miniature Plug |
| Insulation Material | Teflon |
| Length, Wire | 16.4 ft (5m) |
| Maximum Operating Temperature | 482 F (250 C) |
| Minimum Operating Temperature | -103 F (-75 C) |
| Shop By | Factory Choice |
| Thermocouple Type | Type K |
| UPC Code | 5056112124894 |
| Warranty | 3 Year Warranty |
| Wire Size | 1/0.3 (0.078mm2) |
Overview

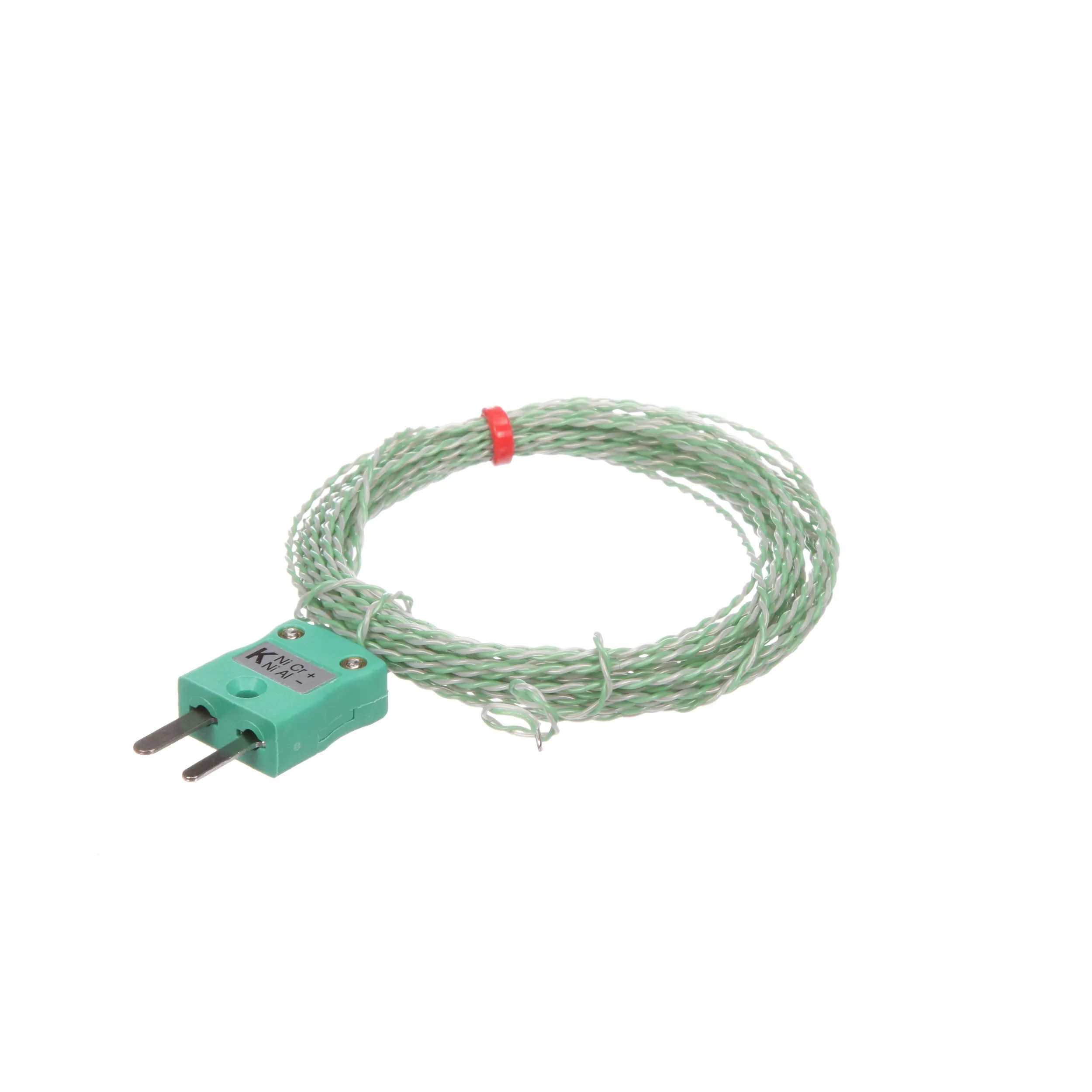

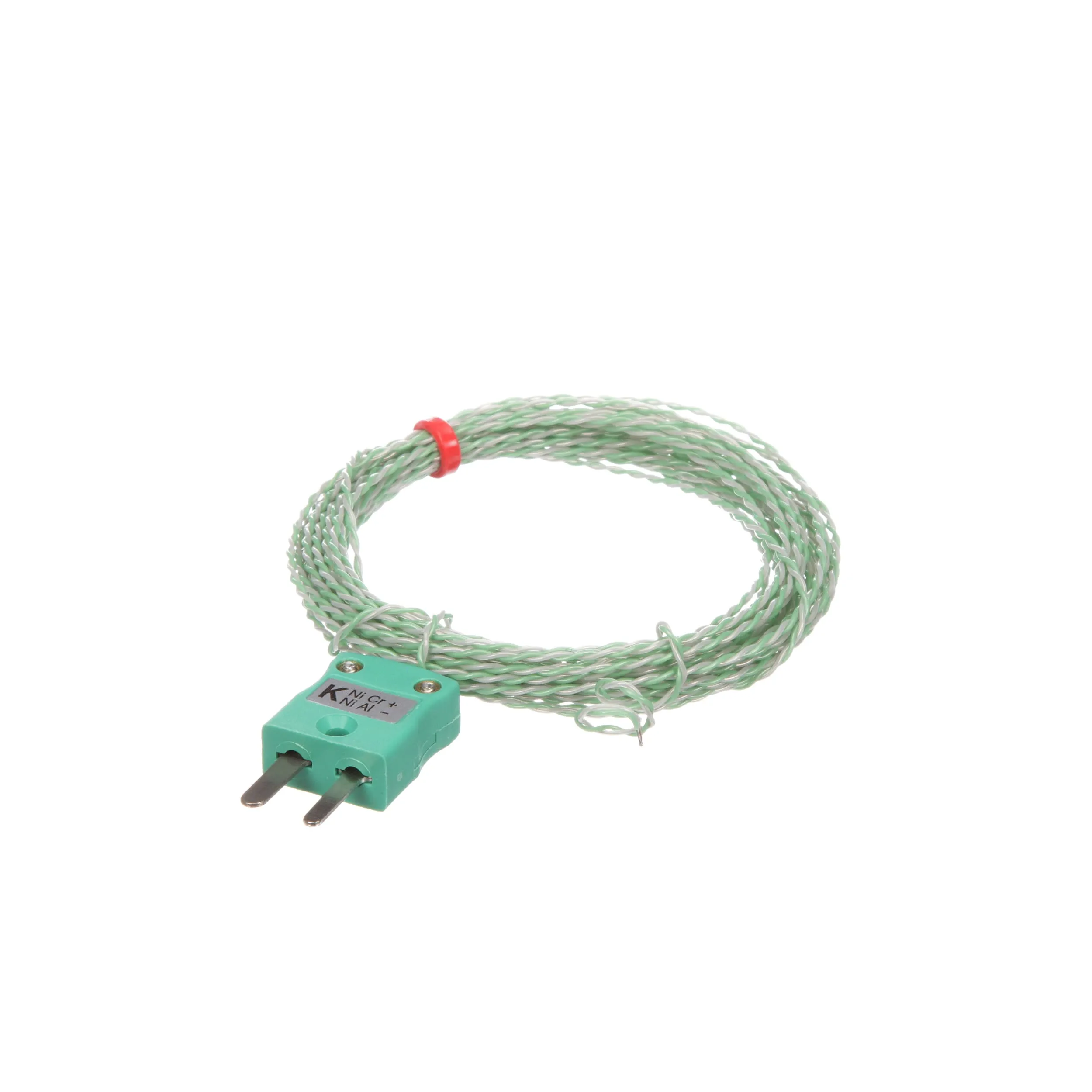

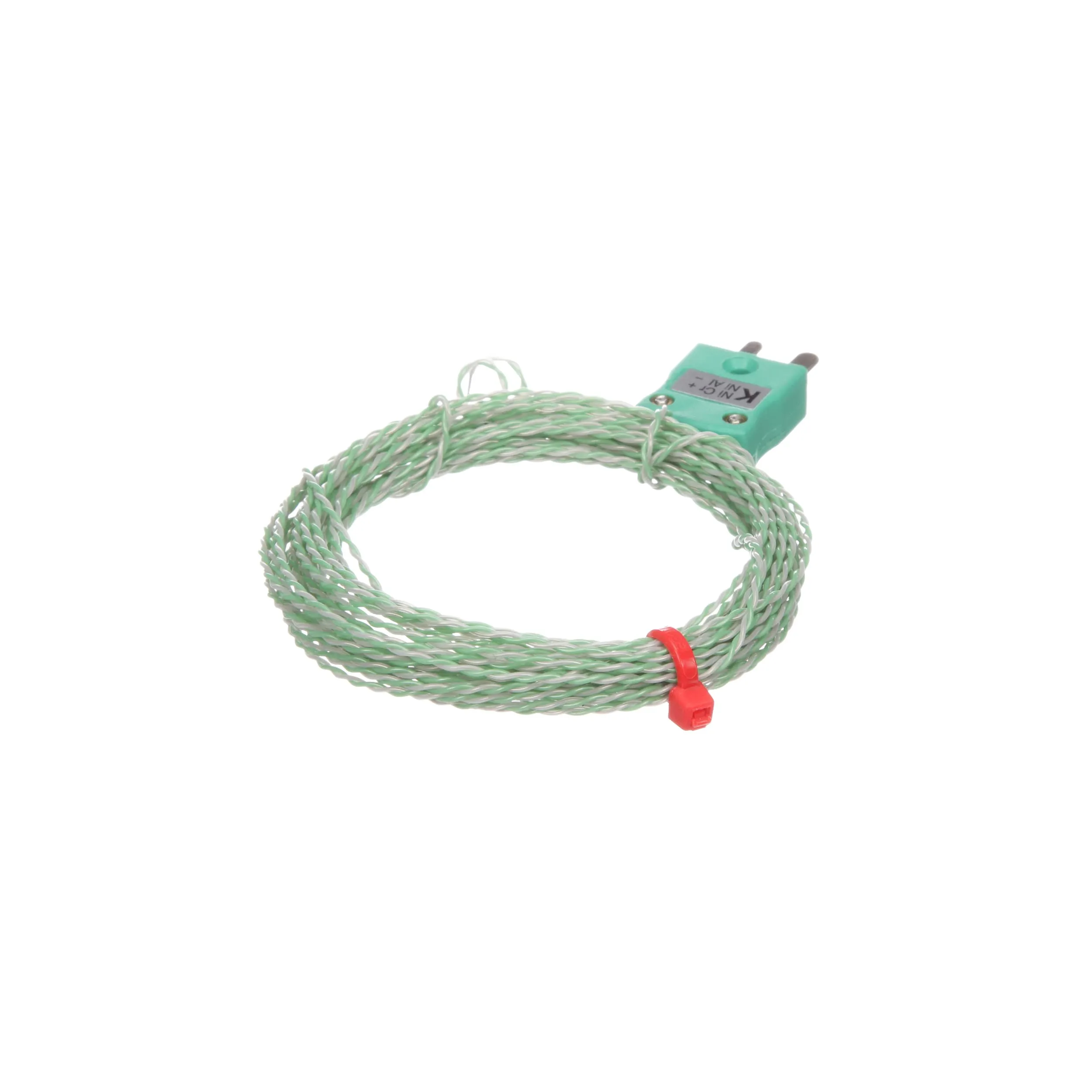

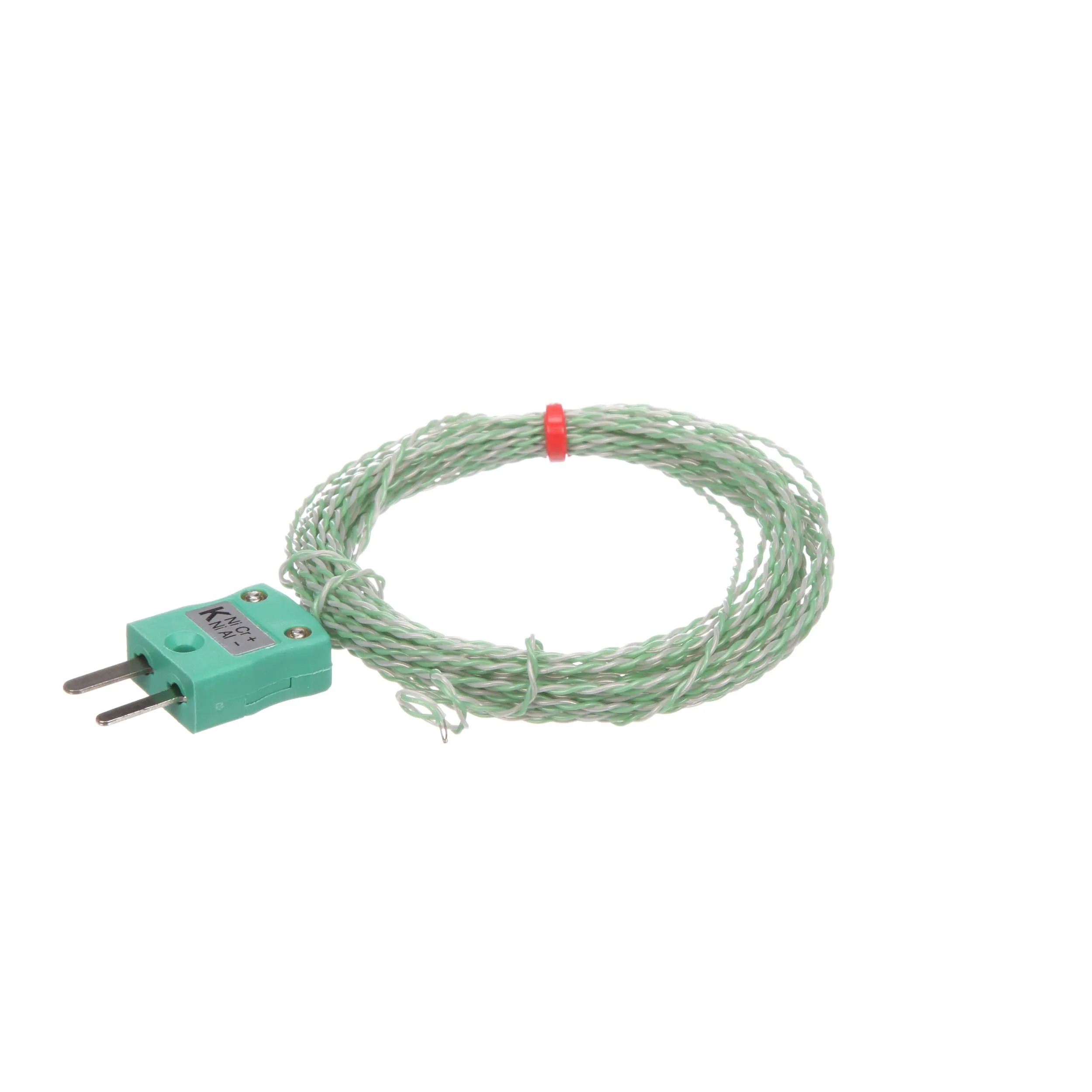

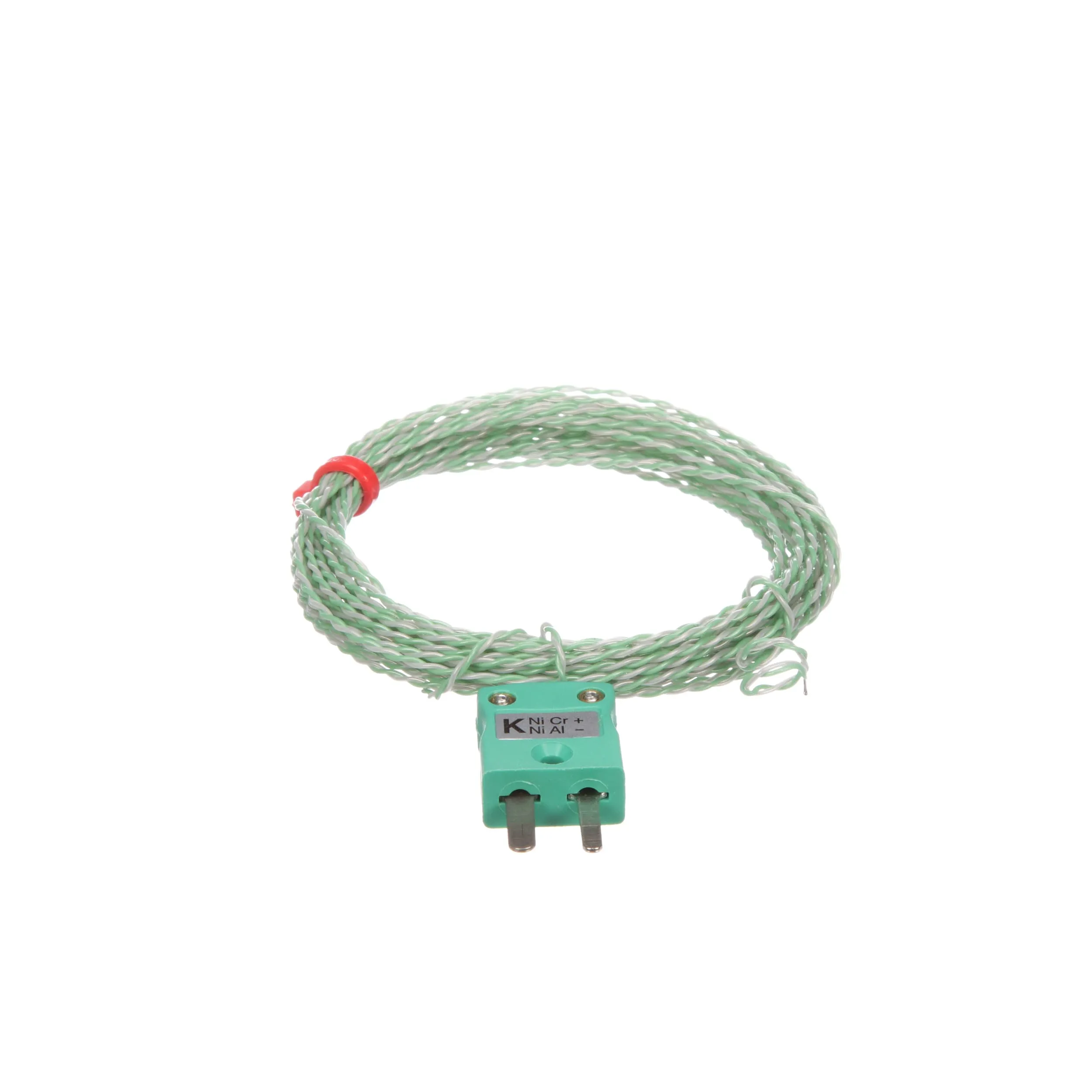

Durable Type K, J & T Exposed Welded Tip Thermocouples
Thermocouple types K, J & T to IEC 584
Fast response, welded exposed junction
Durable Teflon construction with choice of conductor size, 1/0.315mm solid or 7/0.2mm stranded
Miniature plug termination
Temperature range -75 → 250 °C
Ideal for test & development applications
