Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | XQ-1480 |
| Connection Type | Plug |
| Insulation Color | Green/White |
| Insulation Material | Fiberglass |
| Jacket Color | Green |
| Jacket Material | Stainless Steel |
| Length, Wire | 6.56 ft (2m) |
| Maximum Operating Temperature | 662 F (350 C) |
| Minimum Operating Temperature | -76 F (-60 C) |
| Shop By | Factory Choice |
| Thermocouple Type | Type K |
| UPC Code | 5056279027564 |
| Wire Size | 7/0.2 (0.219mm2) |
Overview

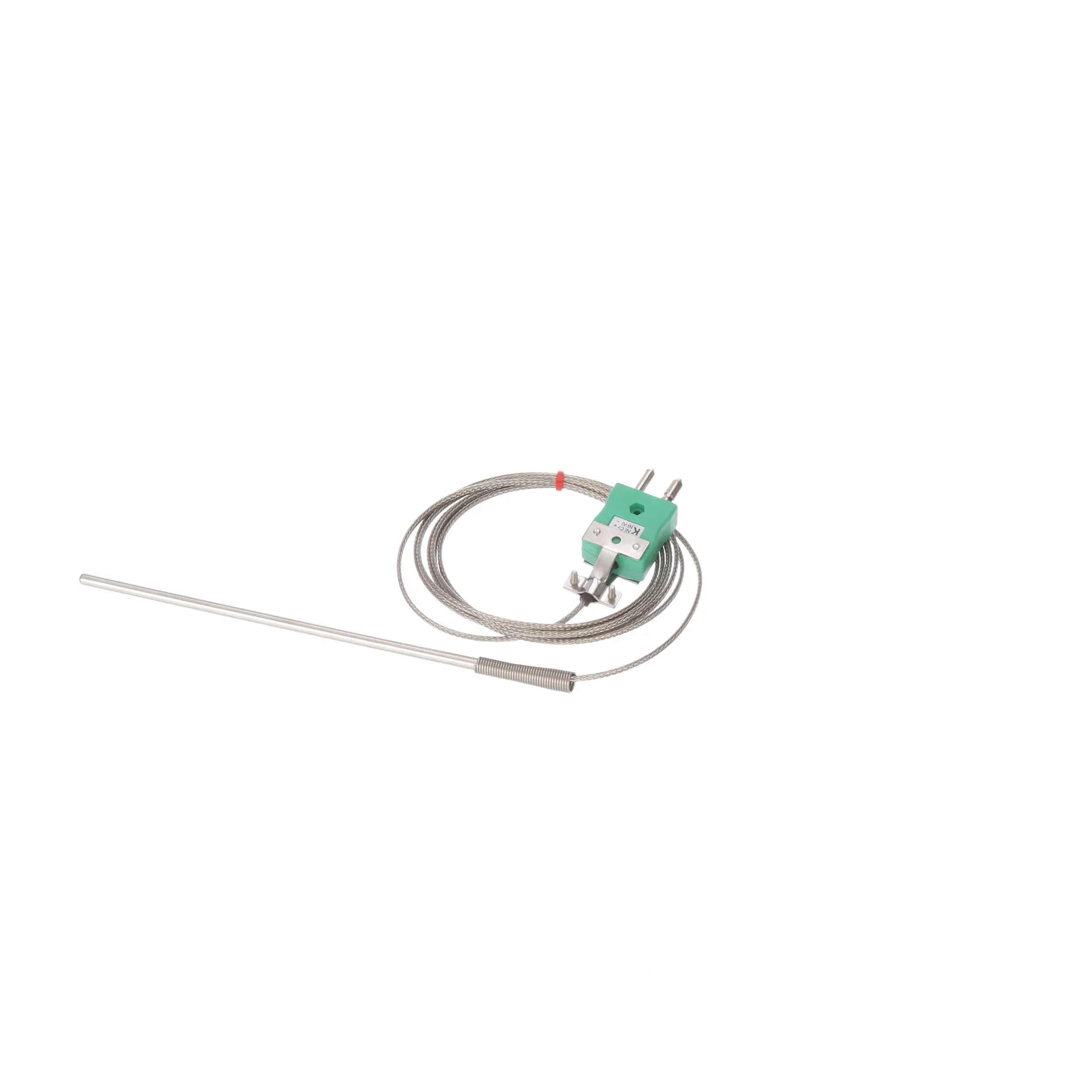

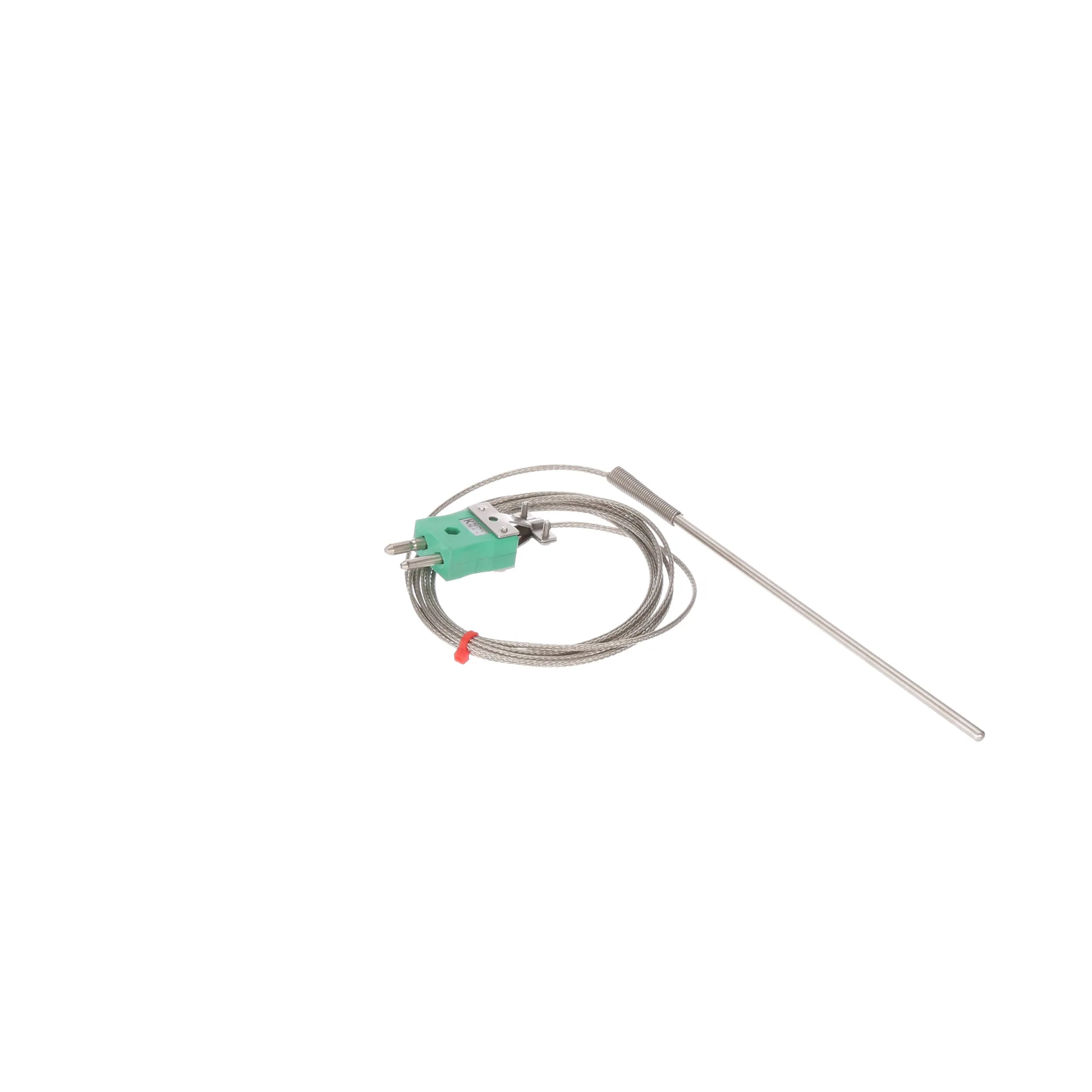

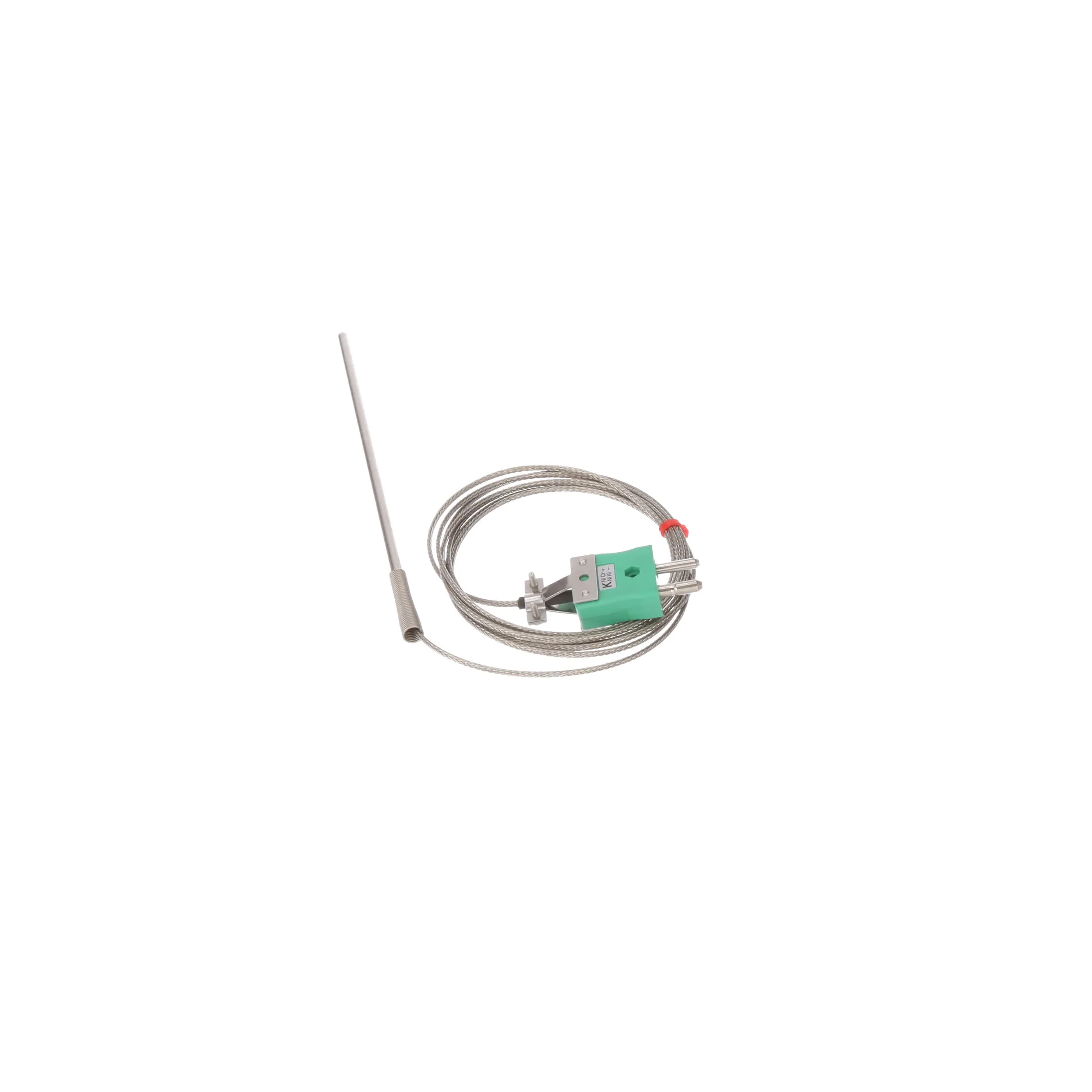

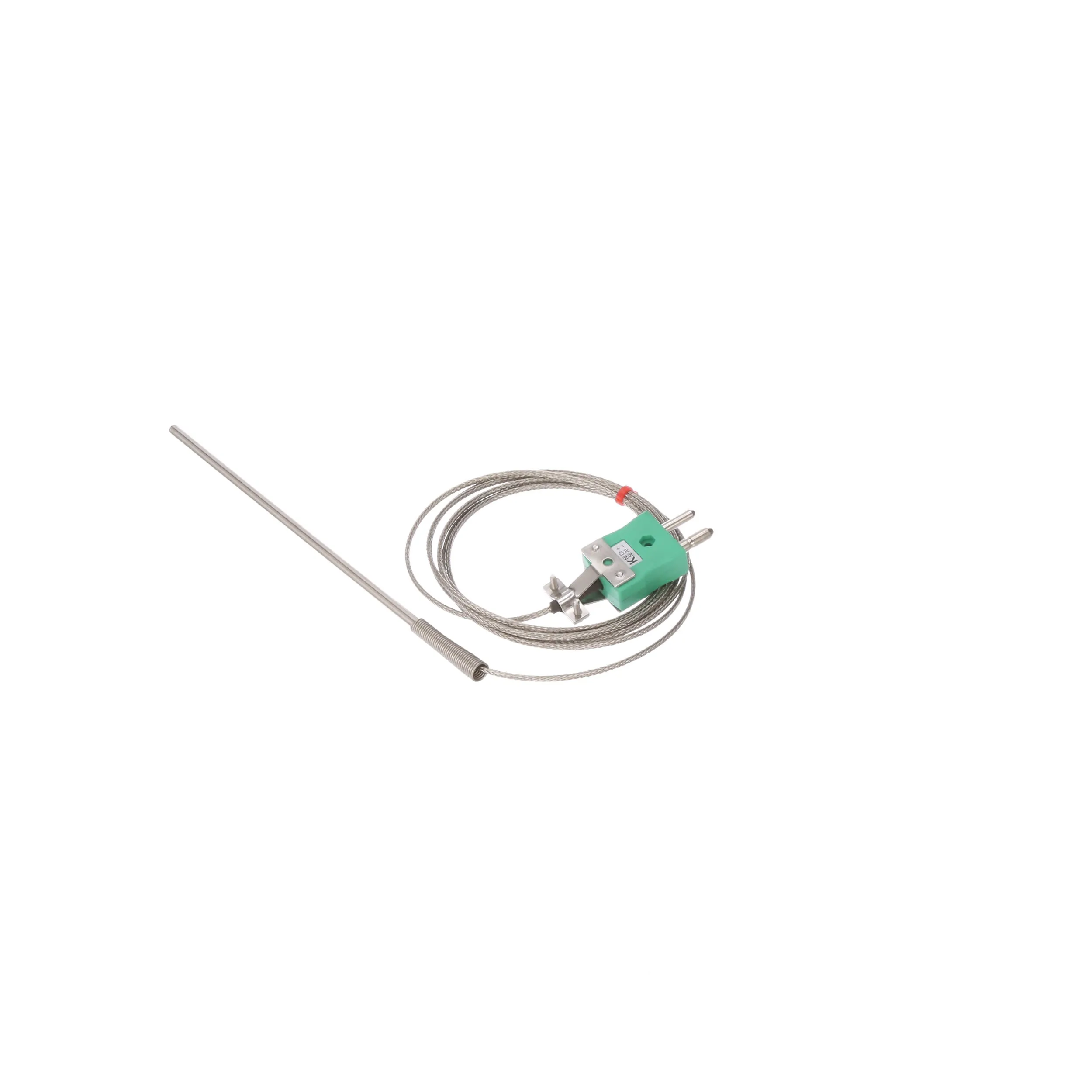

Heavy Duty Thermocouple, Type J & K
Type J or K thermocouple
Stainless steel 316 probe with a silver soldered tip
4.5 mm diameter x 150 mm
Option of bare tails or standard plug termination with cable clamps
Response time 1.25 s (max)
2 m 7/0.2 mm glass fibre insulated cable with stainless steel braided
Grounded measuring junction
Temperature range: -60 to 350 °C
