Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | XQ-1477 |
| Connection Type | Miniature Plug |
| Insulation Color | Green/White |
| Insulation Material | Fiberglass |
| Jacket Color | Green |
| Jacket Material | Stainless Steel |
| Length, Wire | 6.56 ft (2m) |
| Maximum Operating Temperature | 662 F (350 C) |
| Minimum Operating Temperature | -76 F (-60 C) |
| Shop By | Factory Choice |
| Thermocouple Type | Type K |
| UPC Code | 5056279027533 |
| Wire Size | 7/0.2 (0.219mm2) |
Overview

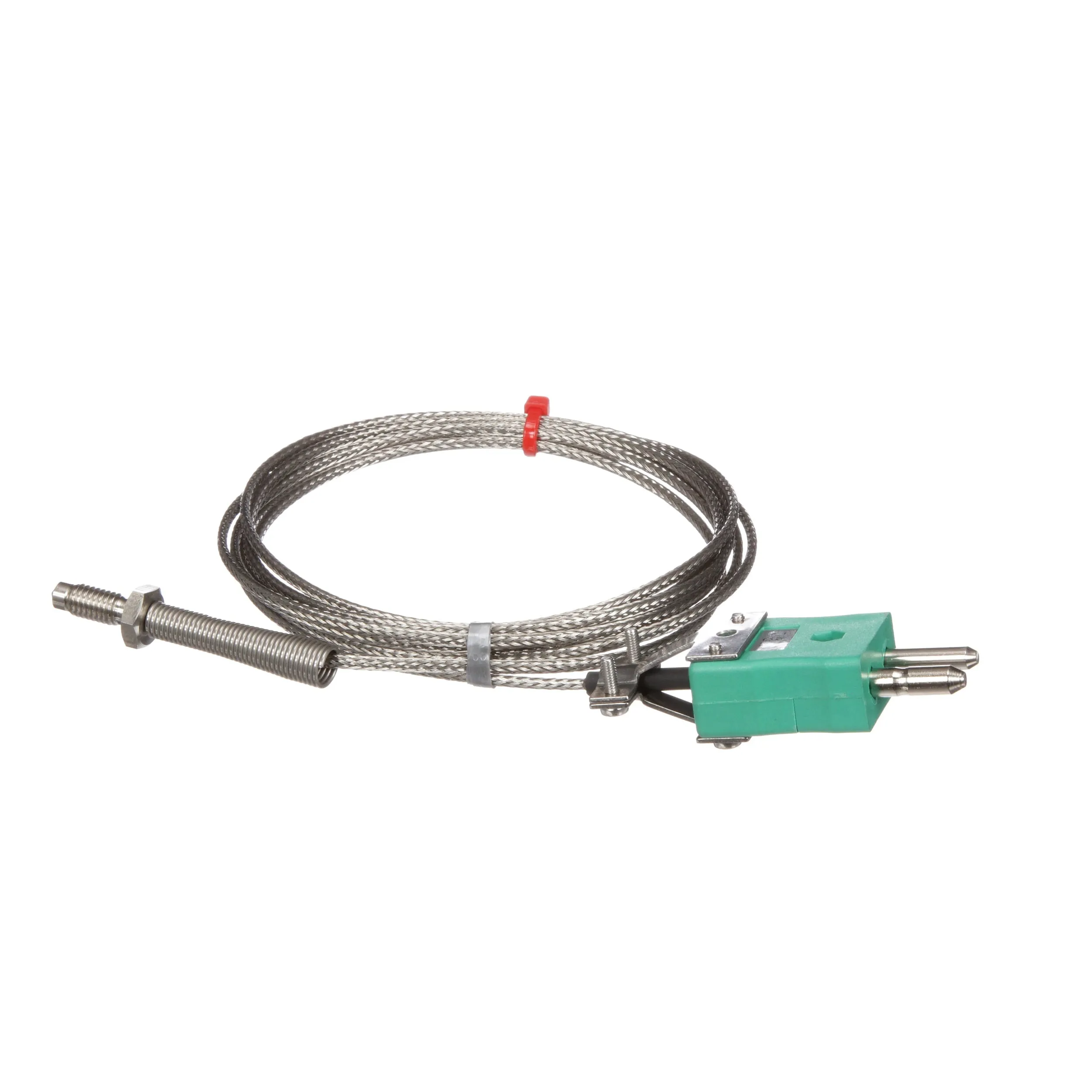

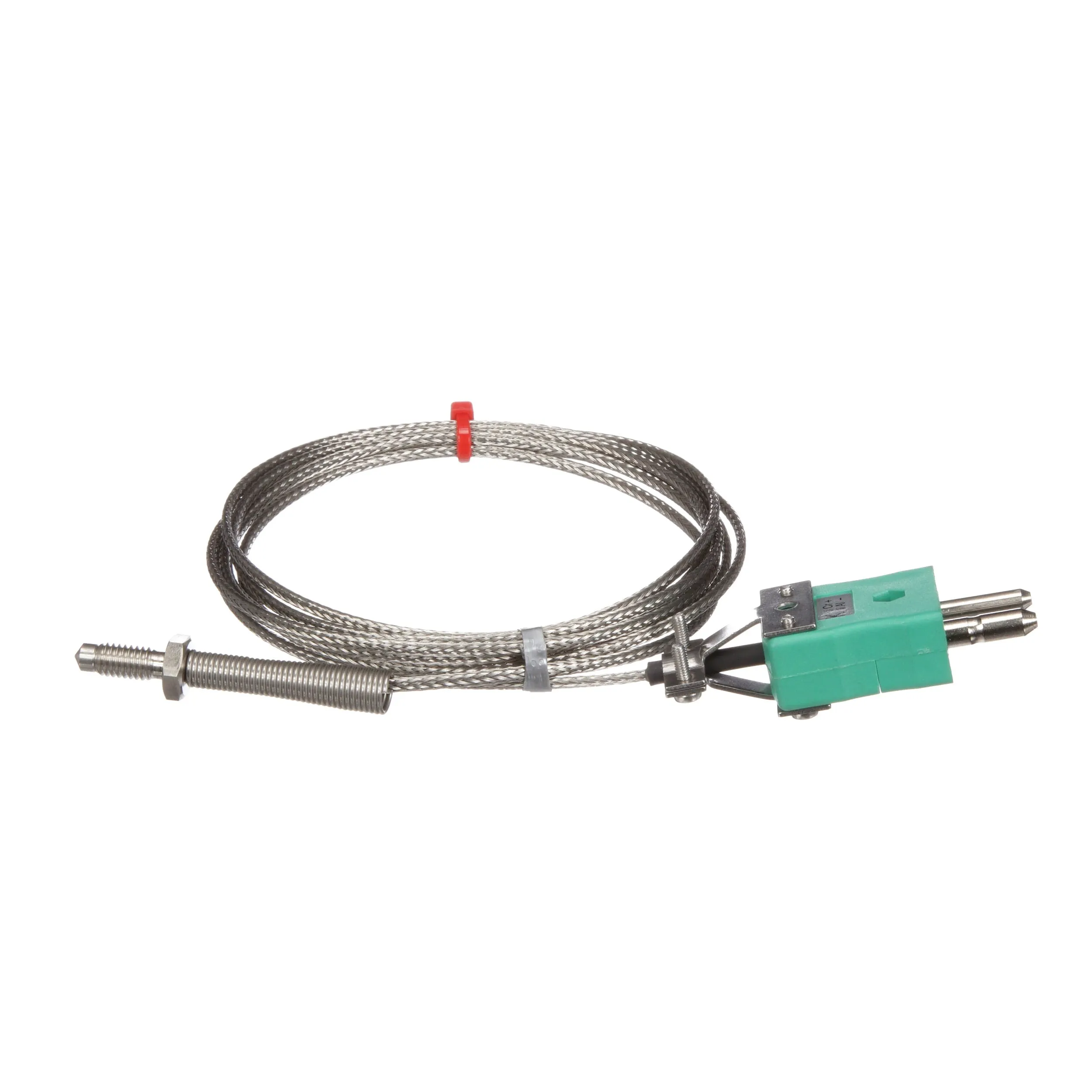

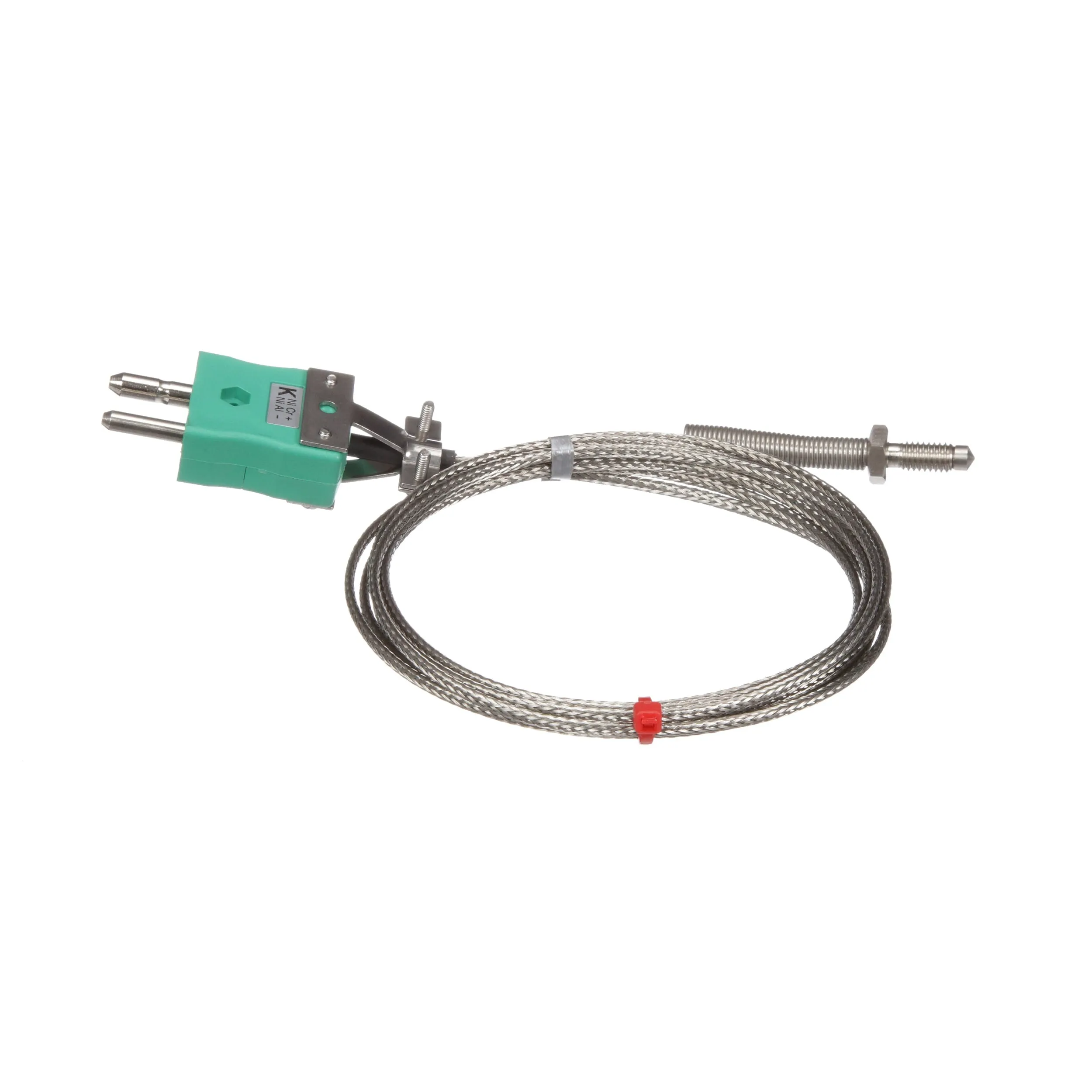

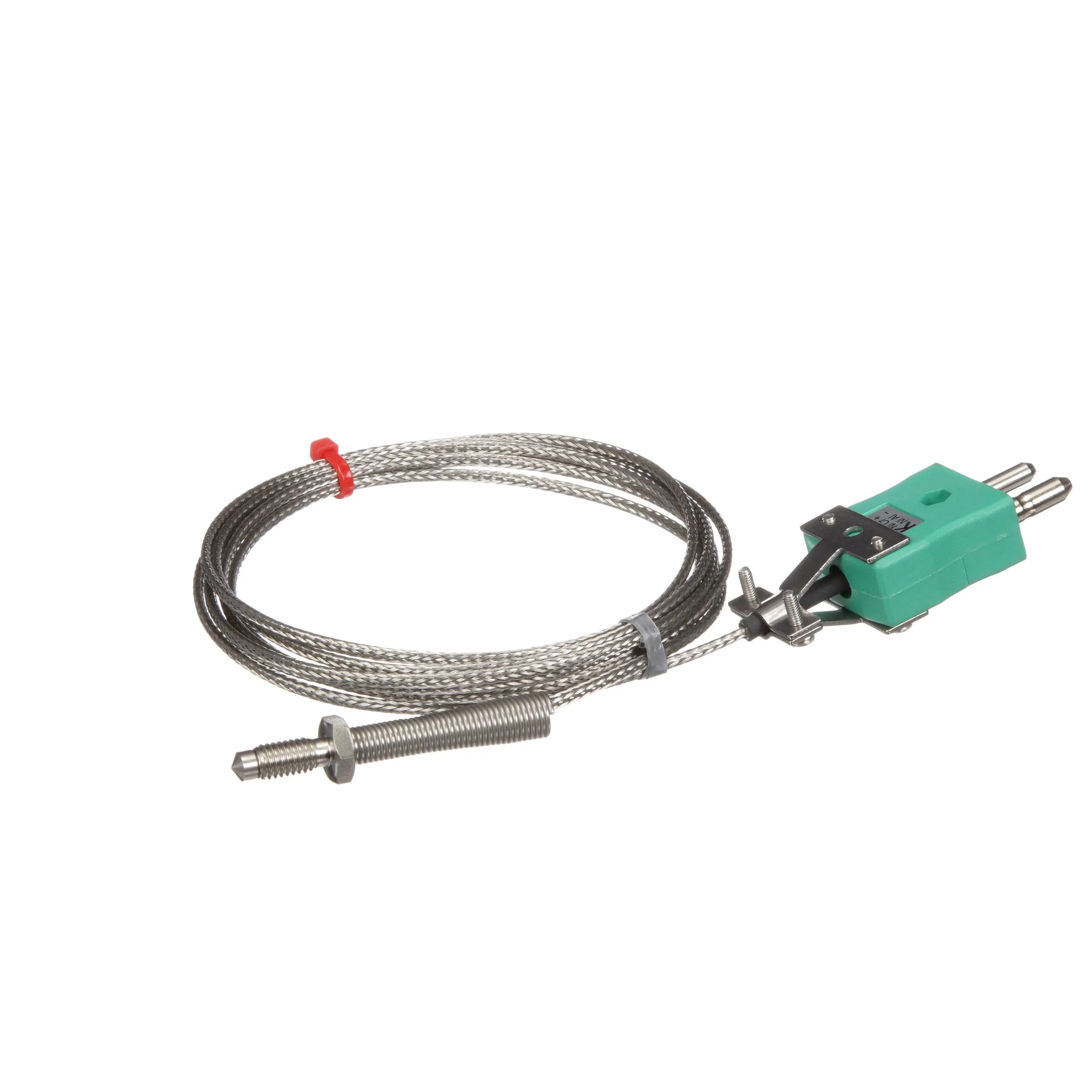

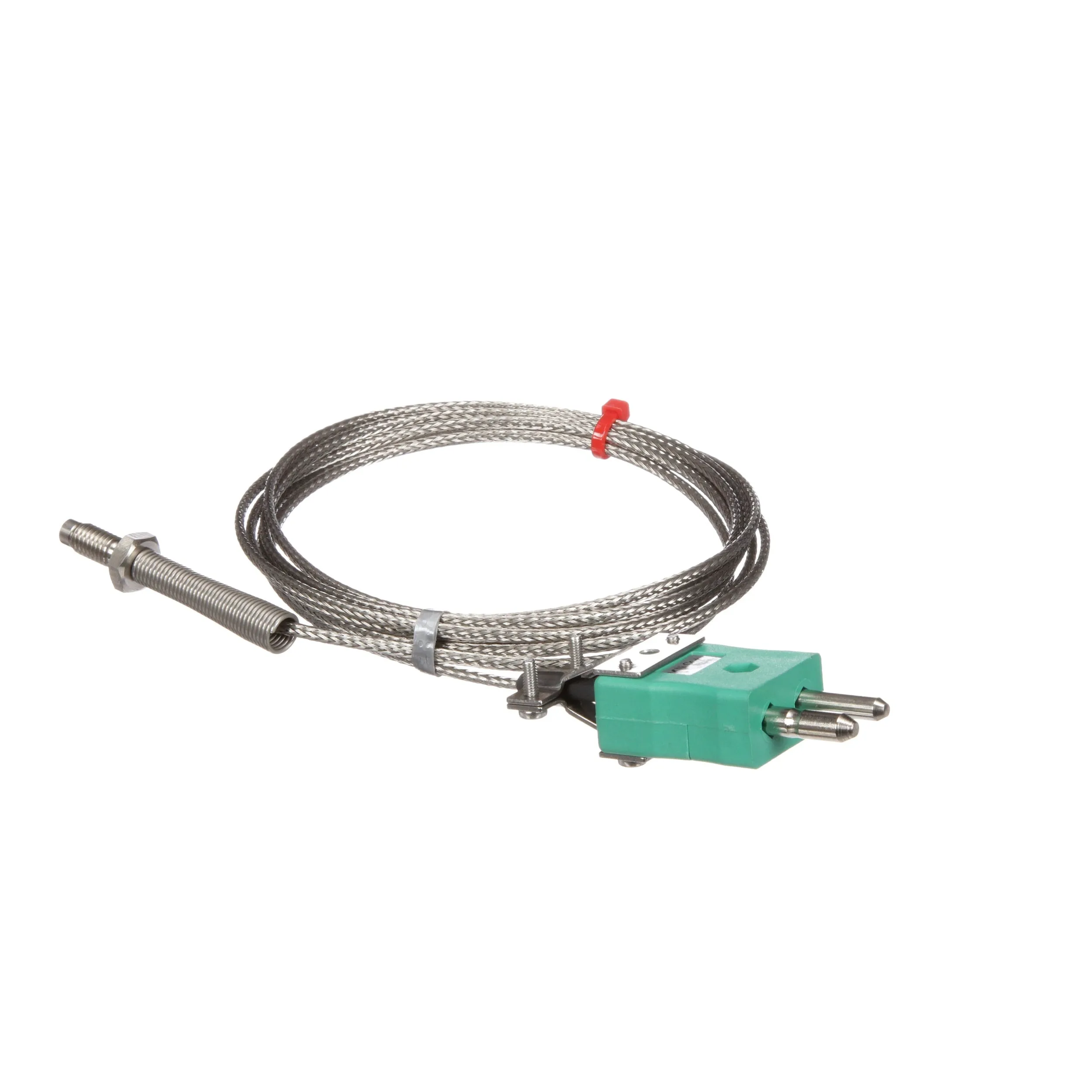

Type K Nozzle Thermocouples
Thermocouple housed in a stainless steel threaded bolt
M6 x 1 mm thread
Grounded tip for fast response
Rated 350°C
2 m glassfibre insulated lead with stainless steel overbraid, 7/0.2mm
Fitted with cable clamps and standard thermocouple plug
Good temperature resistance but not suitable where fluids are present
Tolerance Class 2 to IEC-584
Insulation rating -60°C to 350°C (short periods up to 400°C)
Colour code (cores & jacket) to IEC-584-3
