Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | XQ-1471 |
| Connection Type | Wire Leads |
| Insulation Color | Green/White |
| Insulation Material | Teflon |
| Jacket Color | Green |
| Length, Wire | 3.3 ft (1m) |
| Maximum Operating Temperature | 392 F (200 C) |
| Minimum Operating Temperature | 32 F (0 C) |
| Shop By | Factory Choice |
| Thermocouple Type | Type K |
| UPC Code | 5056279027472 |
| Wire Size | 1/0.2 (0.32mm2) |
Overview

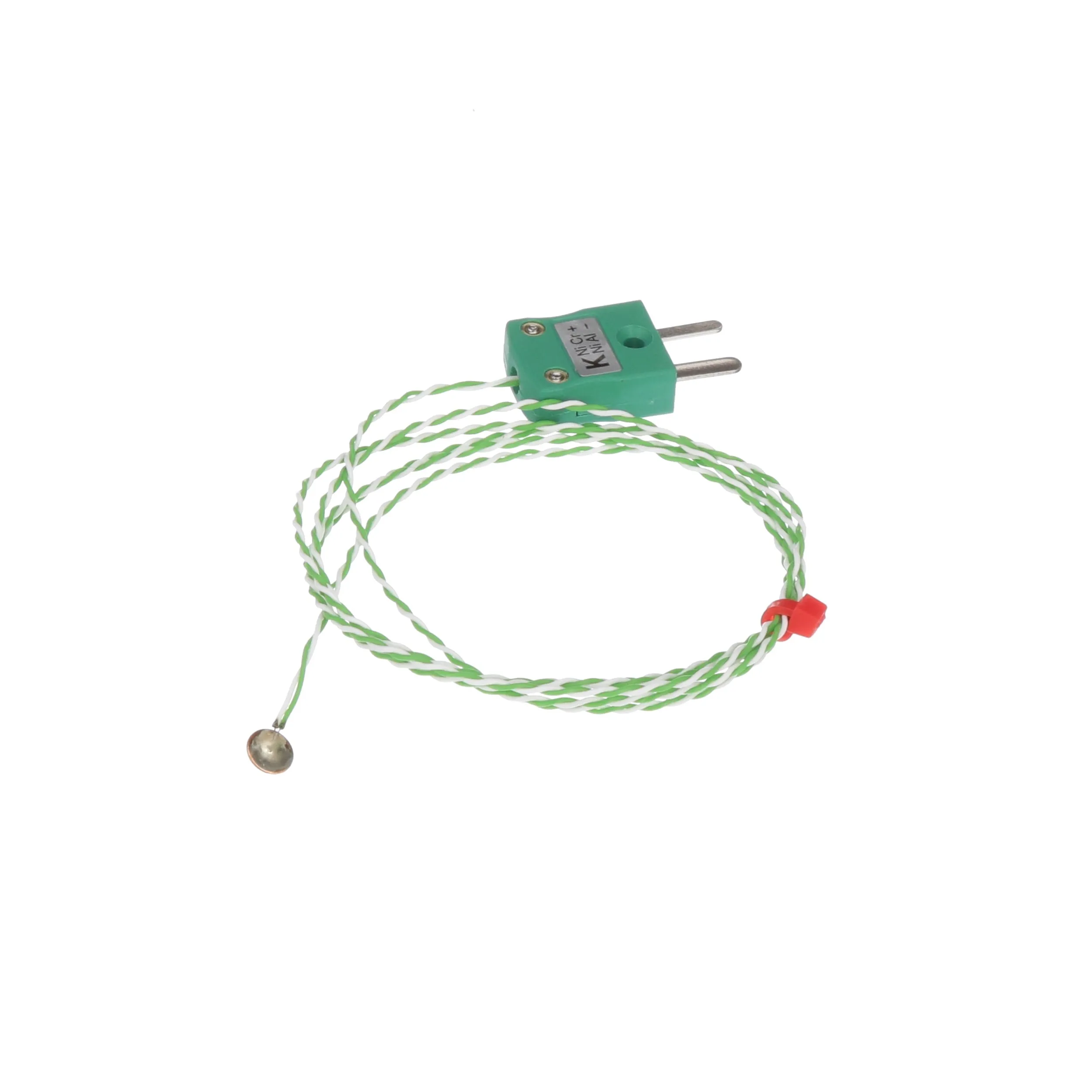

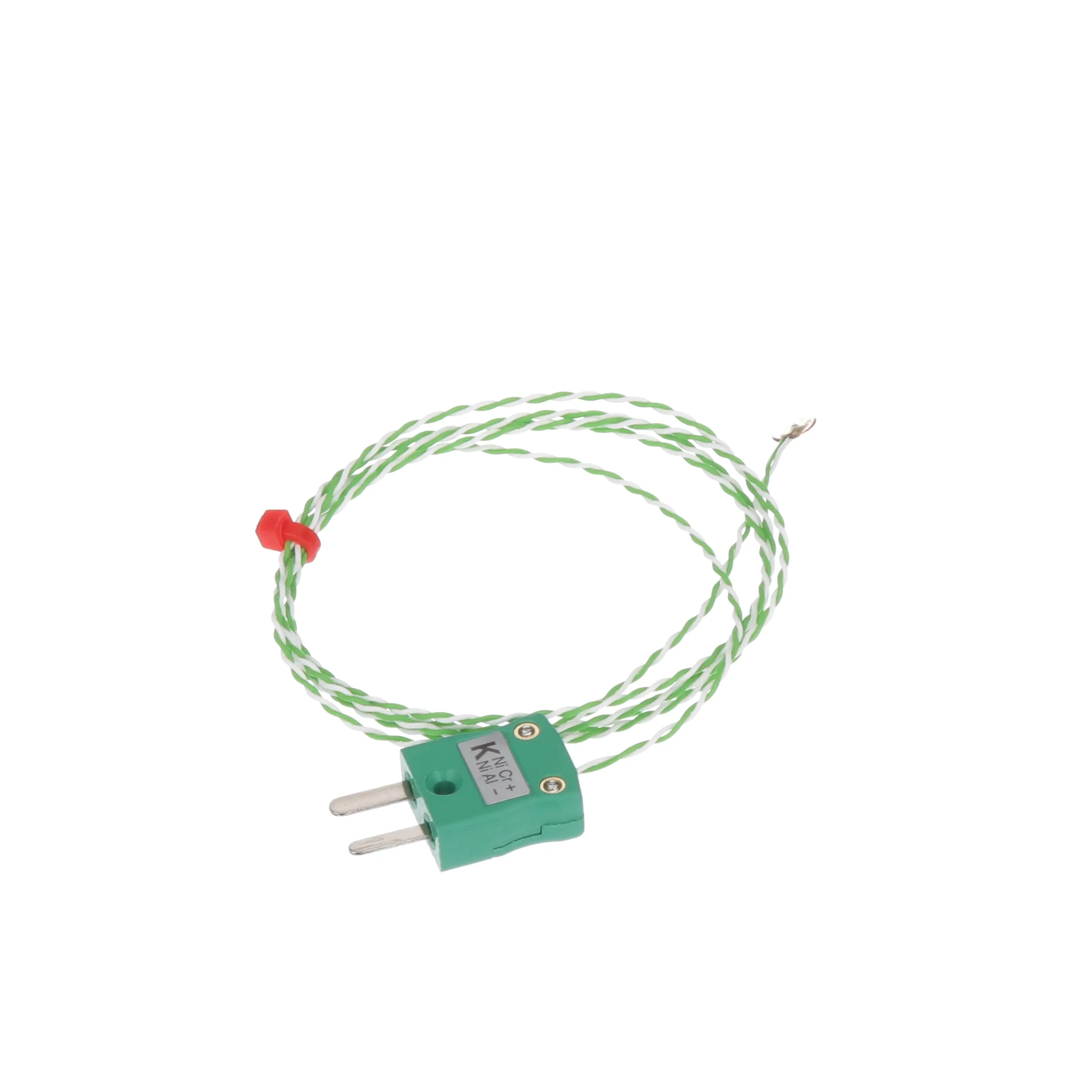

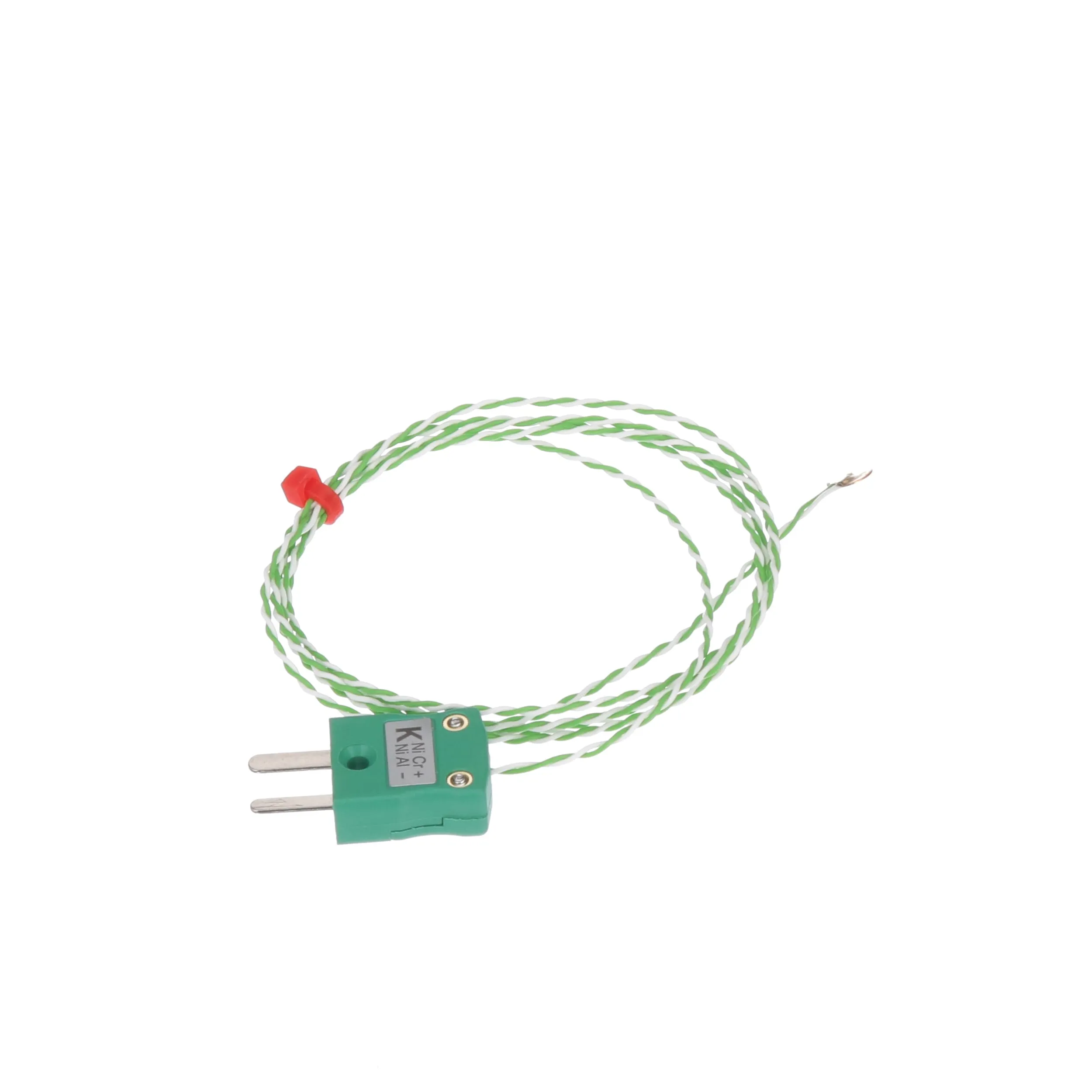

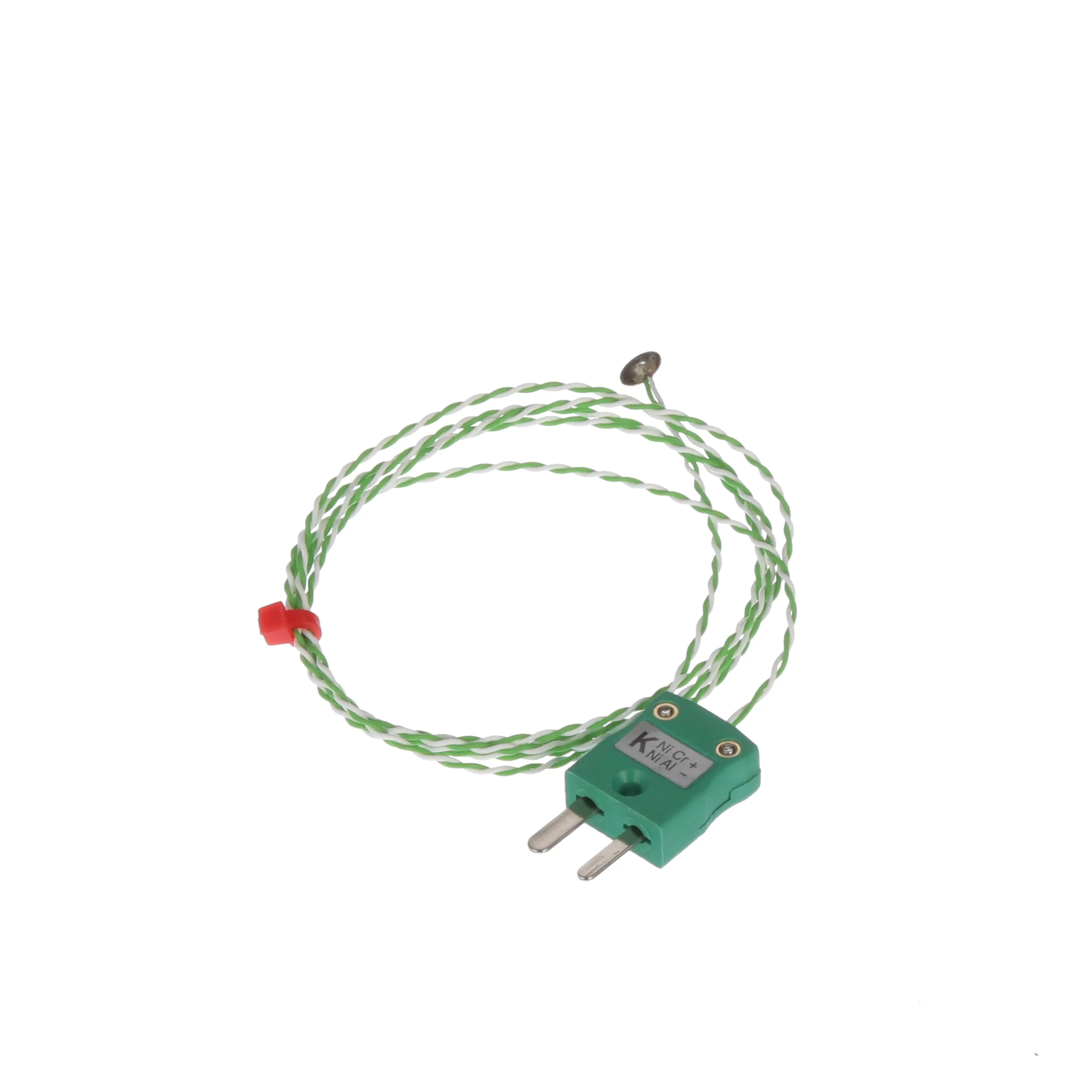

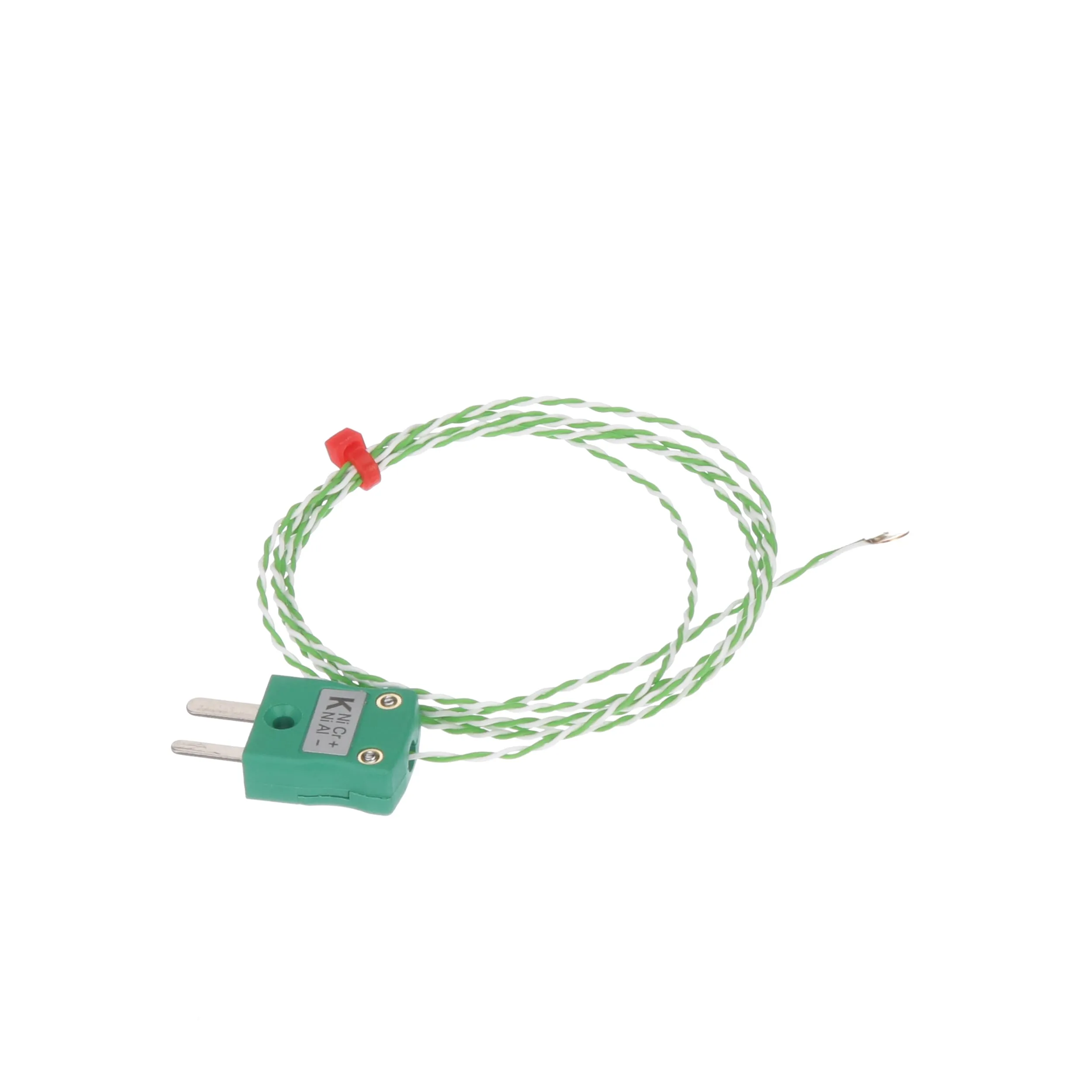

Type K and J Copper Disc Thermocouples
Exposed junction thermocouple with Copper Disc brazed at tip
Fast response – ideal for surface measurement
High temperature adhesive Kapton strips (13 x 18 x 5 mm)
Copper disc, 6.35 mm diameter x 0.3 mm thick
1/0.2 mm Teflon® insulated twisted wire
1 m or 2 m cable length
Good mechanical strength and flexibility
Resistant to oils, acids and other adverse fluids, steam and gasses
Ideal for test and development applications
Temperature range -0°C to 200°C
Colour coded to IEC 584-2 specification
