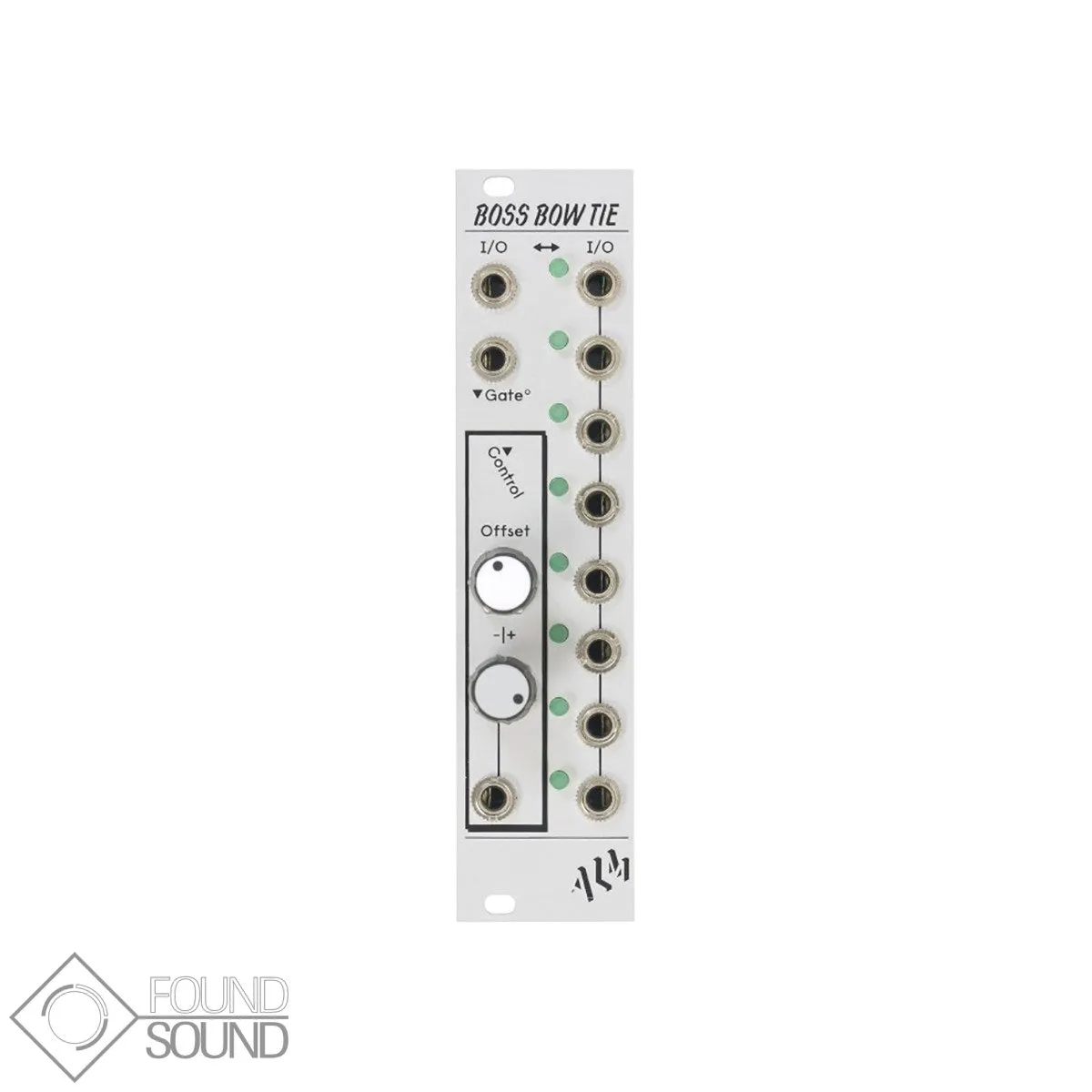

Boss Bow Tie is a 6HP 8 way bidirectional voltage controlled switch. An input ‘I/O’ signal is mapped to an output ‘I/O’ via a corresponding control voltage. As bidirectional, this can be either 1 of up to 8 inputs into a single output or a single input into 1 of up to 8 outputs. The control input features both an attenuverter and offset to precisely select which of the 8 I/O’s are available to be ‘switched’. A normalised ‘Gate’ input enables and disables the switch allowing for rhythmic and other effects.

The module is intended primarily for flexible routing of CV signals. Though audio signals will work – audible clicks can sometimes be apparent when switching I/O’s.

Brand new with warranty.

Video:

Product Specs

• Item Number: 7942
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: United Kingdom
• MPN: ALM007
• Modular Grid: Eurorack
• Dimensions*: 6 HP 32 mm deep
• Power*: 50 mA 12V 50 mA -12V ? mA 5V

* User contributed details
